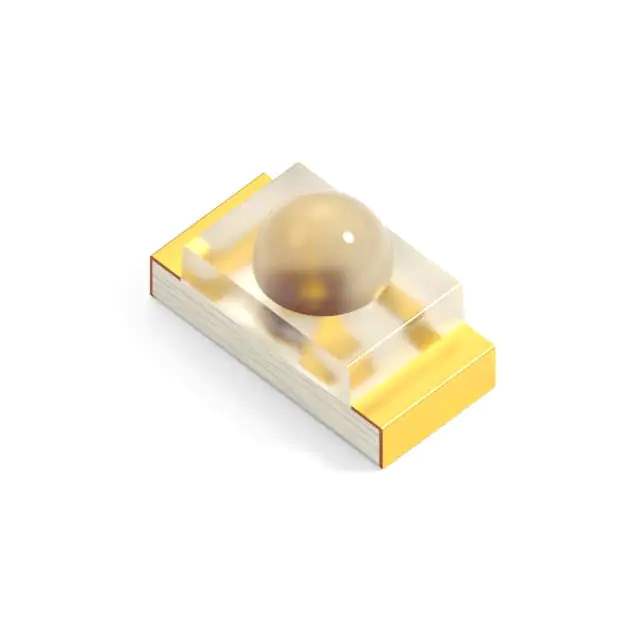

XZM2CRK53W-8 Real Image
Same model may have multiple batches, images only for reference.

XZM2CRK53W-8

Part No XZM2CRK53W-8
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED RED CLEAR 2SMD / Red 625nm LED Indication - Discrete 2.2V 0603 (1608 Metric)
Datasheet
XZM2CRK53W-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr SunLED
Series PixsoLED, VersoLED
Package Tape & Reel
Product Status Active
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 795mcd
Lens Style Round with Domed Top
Lens Size 0.70mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 60°
Mounting Type Surface Mount
Wavelength - Dominant 625nm
Wavelength - Peak 640nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 2-SMD
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.95mm
Base Product Number XZM2CRK53
Standard Package 2,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 845699-XZM2CRK53W-8
Ultra Librarian 3D Model Ultra Librarian XZM2CRK53W-8 CAD Model

Description

The XZM2CRK53W-8 is a PixsoLED and VersoLED series LED indication component from SunLED.

  • Light Color: Red
  • Viewing Angle: 60°
  • Size: 1.60mm L x 0.80mm W
  • Height: 0.95mm
  • Voltage Forward (Vf): 2.2V
  • Current Test: 20mA
  • Millicandela Rating: 795mcd
  • Wavelength Dominant: 625nm
  • Wavelength Peak: 640nm
  • Mounting Type: Surface Mount
  • Package: 0603 (1608 Metric)
  • Packaging: Tape and Reel
  • Standard Package: 2,000 pcs
  • Lens Style: Round with Domed Top
  • Lens Size: 0.70mm Diameter
  • Status: Active
