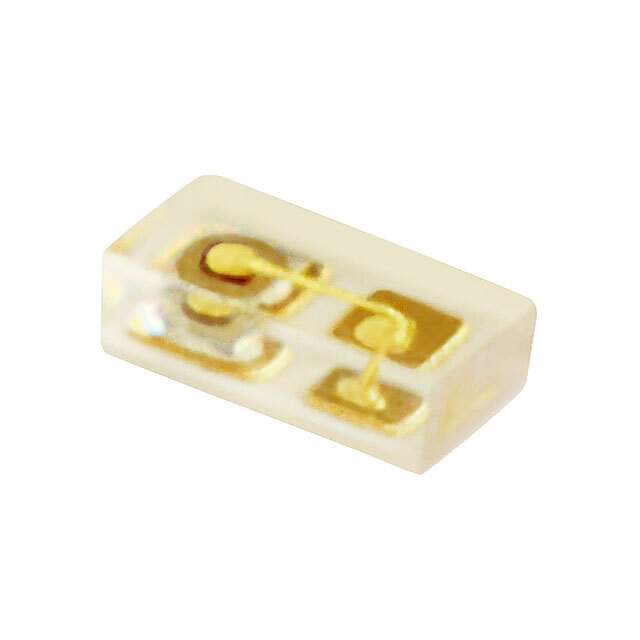

XZBGR155W5MAV Real Image
Same model may have multiple batches, images only for reference.

XZBGR155W5MAV

Part No XZBGR155W5MAV
Manufacturer SunLED
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 2SMD / Green 527nm LED Indication - Discrete 3V 2-SMD, No Lead
Datasheet
XZBGR155W5MAV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr SunLED
Series NanoPoint-0201
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 79mcd
Lens Style Rectangle with Flat Top
Lens Size 0.65mm x 0.35mm
Voltage - Forward (Vf) (Typ) 3V
Current - Test 5mA
Viewing Angle 145°
Mounting Type Surface Mount
Wavelength - Dominant 527nm
Wavelength - Peak 518nm
Package / Case 2-SMD, No Lead
Supplier Device Package 2-SMD
Size / Dimension 0.65mm L x 0.35mm W
Height (Max) 0.25mm
Base Product Number XZBGR155
Standard Package 4,000
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1348969-XZBGR155W5MAV
Ultra Librarian 3D Model Ultra Librarian XZBGR155W5MAV CAD Model

Description

The Weidmüller terminal block is a header, male pins, shrouded (4 side) type.

  • Positions: 4
  • Positions Per Level: 4
  • Levels: 1
  • Pitch: 0.200" (5.08mm)
  • Header Orientation: Vertical
  • Termination Style: Solder
  • Current-IEC: 24A
  • Voltage-IEC: 400V
  • Current-UL: 18.5A
  • Voltage-UL: 300V
  • Color: Orange
  • Contact Mating Finish: Tin
  • Interlocking: Side
  • Package: Bulk
  • Contact Material: Copper Alloy
  • Housing Material: Polyamide (PA), Nylon, Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Insulation Height: 0.472" (12.00mm)
  • Temperature Range: -50℃ ~ 100℃
  • Mounting Type: Through-Hole
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
