Same model may have multiple batches, images only for reference.

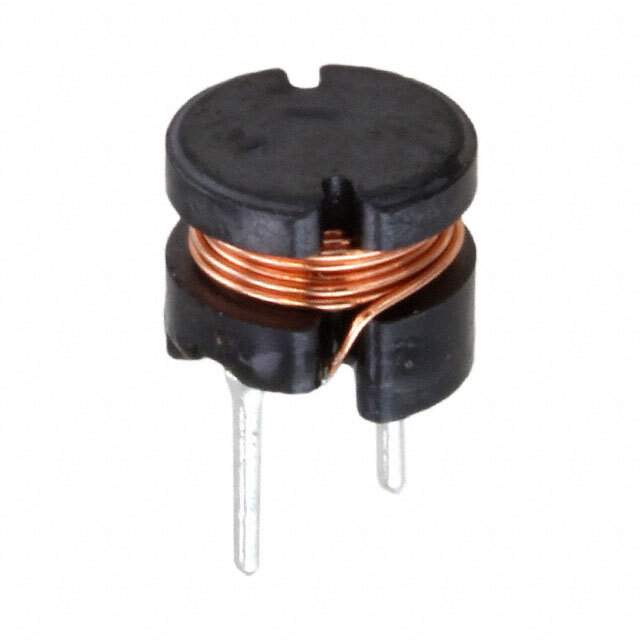

RCH654NP-470K Real Image
Same model may have multiple batches, images only for reference.

RCH654NP-470K

Part No RCH654NP-470K
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 620MA 340 MOHM TH / 47 µH Unshielded Drum Core, Wirewound Inductor 620 mA 340mOhm Max Radial, Vertical Cylinder (Open)
Datasheet
RCH654NP-470K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series RCH-654
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 620 mA
Shielding Unshielded
DC Resistance (DCR) 340mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Size / Dimension 0.236" Dia (6.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1336868-RCH654NP-470K
Ultra Librarian 3D Model Ultra Librarian RCH654NP-470K CAD Model

Description

The Sumida America Components Inc. RCH654NP-470K is a fixed inductor that is designed for use in various electronic applications. Sumida America Components Inc.

  • Inductance: 47 μH
  • DC Resistance (DCR): 340mOhm Max
  • Core Type: Drum Core, Wirewound
  • Packaging: Bulk
  • Mounting Type: Through Hole
