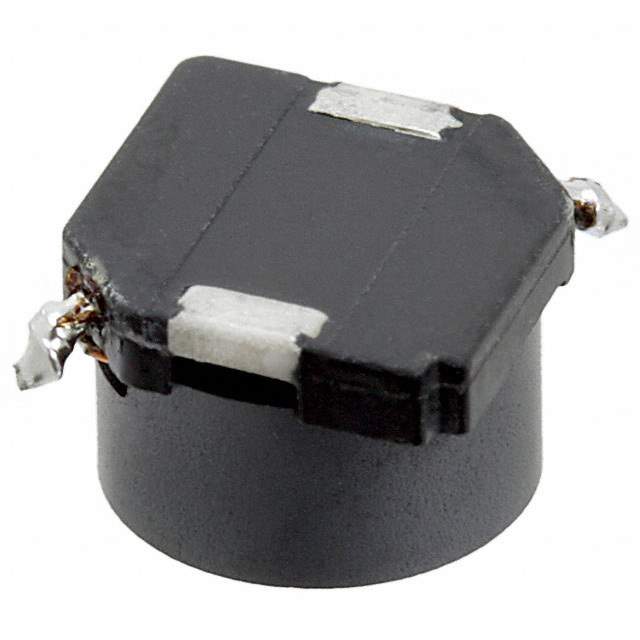

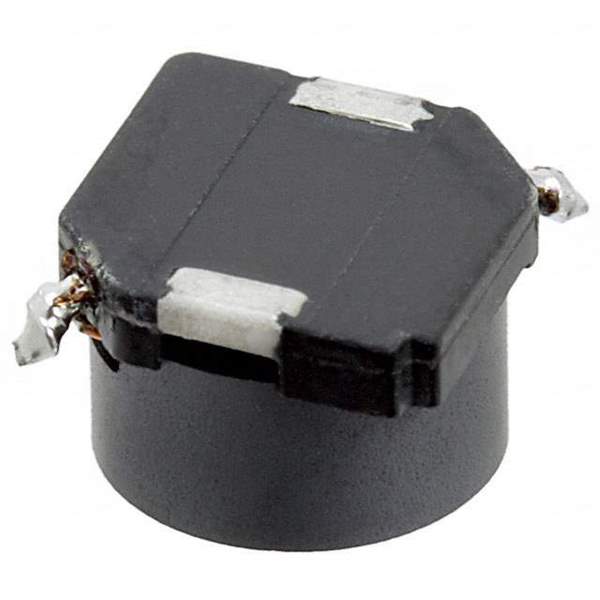

CDRR75NP-100MC Real Image
Same model may have multiple batches, images only for reference.

CDRR75NP-100MC

Part No CDRR75NP-100MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 2.4A 57 MOHM SMD / 10 µH Shielded Inductor 2.4 A 57mOhm Max Nonstandard
Datasheet
CDRR75NP-100MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 1.32A
Shielding Shielded
DC Resistance (DCR) 57mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.272" L x 0.272" W (6.90mm x 6.90mm)
Height - Seated (Max) 0.189" (4.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number CDRR75NP100MC,308-1672-1,308-1672-2,308-1672-6
Standard Package 1,000
Win Source Part Number 1331328-CDRR75NP-100MC
Ultra Librarian 3D Model Ultra Librarian CDRR75NP-100MC CAD Model

Description

The Sumida America Components Inc. CDRR75NP-100MC is a fixed inductor that is shielded for optimal performance.

  • Manufacturer: Sumida America Components Inc.
  • Product Name: CDRR75NP-100MC
  • Type: Fixed Inductor
  • Shielding: Shielded
  • DC Resistance: 57mOhm Max
  • Current Rating: 2.4 A
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Mounting Technology: Surface Mount
  • Size: 0.272" L x 0.272" W (6.90mm x 6.90mm)
  • Height: 0.189" (4.80mm)
  • Operating Temperature Range: -40°C to 125°C
  • ROHS3 Standards: Compliant
  • ECCN: EAR99
  • Packaging: Reel - TR
  • Standard Package: 1,000
