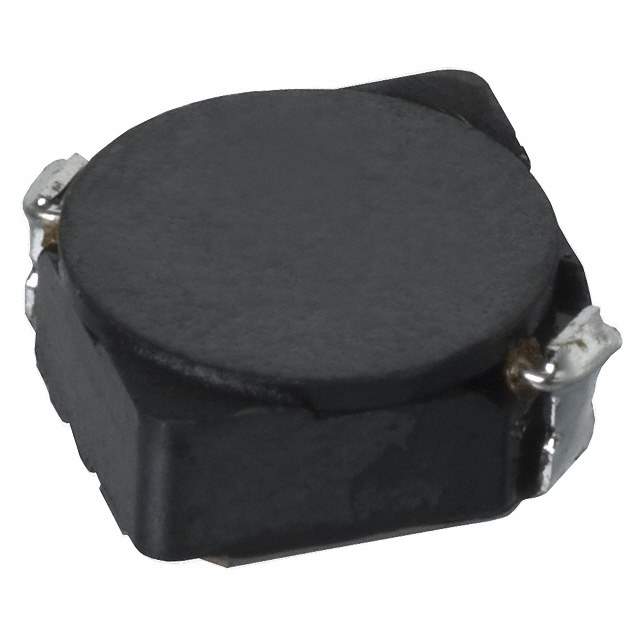

CDRH6D38-180NC

Part No CDRH6D38-180NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH6D38
Package Tape & Reel (TR)
Product Status Obsolete
Material - Core Ferrite
Inductance 18 µH
Tolerance ±30%
Current Rating (Amps) 1.5 A
Shielding Shielded
DC Resistance (DCR) 92mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) 0.157" (4.00mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1315115-CDRH6D38-180NC
Ultra Librarian 3D Model Ultra Librarian CDRH6D38-180NC CAD Model

Description

The Sumida America Components Inc. CDRH6D38-180NC is a shielded fixed inductor that has an inductance of 18μH.

  • Inductance: 18μH
  • Packaging: Tape and Reel (TR)
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 92mOhm max
  • Current Rating: 1.5A
  • Temperature Range: -40°C to 100°C
