Same model may have multiple batches, images only for reference.

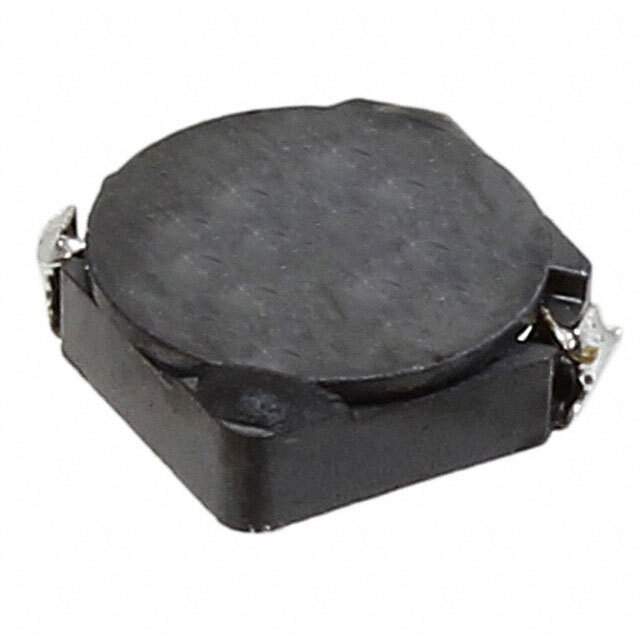

CDRH5D16NP-150MC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D16NP-150MC

Part No CDRH5D16NP-150MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 1.1A 200 MOHM SMD / 15 µH Shielded Inductor 1.1 A 200mOhm Max Nonstandard
Datasheet
CDRH5D16NP-150MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.15A
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.220" L x 0.220" W (5.60mm x 5.60mm)
Height - Seated (Max) 0.071" (1.80mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 308-2048-6,308-2048-2,308-2048-1
Standard Package 1,000
Win Source Part Number 1327567-CDRH5D16NP-150MC
Ultra Librarian 3D Model Ultra Librarian CDRH5D16NP-150MC CAD Model

Description

The Sumida America Components Inc. CDRH5D16NP-150MC is a fixed inductor that comes in a shielded packaging.

  • Shielding: shielded
  • Size or Dimension: 0.220" L x 0.220" W (5.60mm x 5.60mm)
  • Height Seated (max): 0.071" (1.80mm)
  • Inductance: 15 µH
  • Tolerance: ±20%
  • Core Material: ferrite
  • DC Resistance (DCR): 200mOhm Max
  • Operating Temperature: -40°C to 105°C
  • ROHS3 Compliant: true
  • Win Source Part Number: 1327567-CDRH5D16NP-150MC
