Same model may have multiple batches, images only for reference.

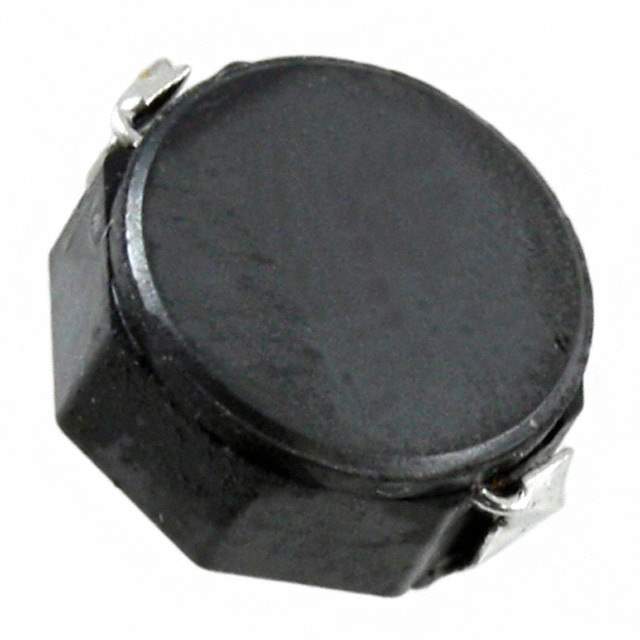

CDRH8D38NP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH8D38NP-4R7NC

Part No CDRH8D38NP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description SMD Power Inductor
Datasheet
CDRH8D38NP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH8D38
Packaging Reel - TR
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±30%
Current Rating 4.4A
Current - Saturation 4.6A
Shielding Shielded
DC Resistance (DCR) 29 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Win Source Part Number 1160895-CDRH8D38NP-4R7NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH8D38
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH8D38NP-4R7NC CAD Model

Description

The Sumida America Components Inc. It has a limited supply and demand status and is an excellent choice for electronic circuits that require a nonstandard package.

  • Operating Temperature Range: -40°C ~ 100°C
  • Current Rating: 4.4A
  • Shielding: feature
  • Core Material: ferrite
  • Tolerance: ±30%
  • Current Saturation: 4.6A
  • Test Frequency: 100kHz
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Estimated EOL Date: 2024
