Same model may have multiple batches, images only for reference.

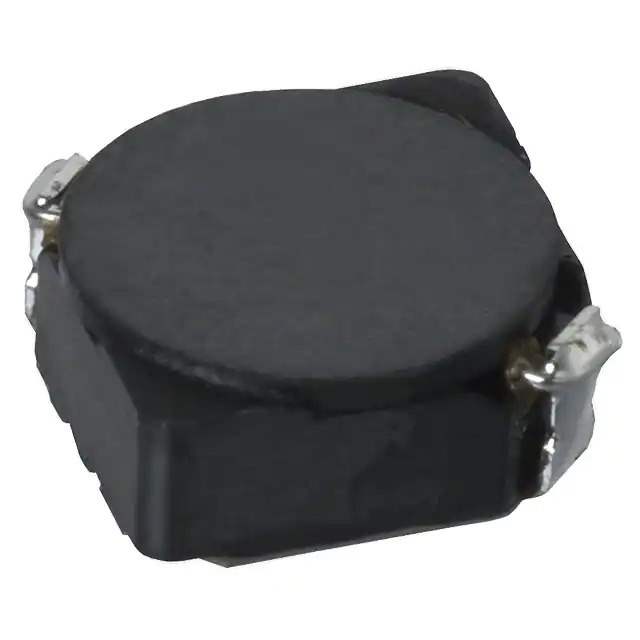

CDRH6D28NP-180NC Real Image
Same model may have multiple batches, images only for reference.

CDRH6D28NP-180NC

Part No CDRH6D28NP-180NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 18UH 1.32A 95 MOHM SMD
Datasheet
CDRH6D28NP-180NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH6D28
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 18 µH
Tolerance ±30%
Current Rating (Amps) 1.32 A
Shielding Shielded
DC Resistance (DCR) 95mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.264" L x 0.264" W (6.70mm x 6.70mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578194-CDRH6D28NP-180NC
Ultra Librarian 3D Model Ultra Librarian CDRH6D28NP-180NC CAD Model

Description

The CDRH6D28NP-180NC is a fixed inductor manufactured by Sumida America Components Inc.

  • Series: CDRH6D28
  • Type: Shielded
  • Mounting Type: Surface Mount
  • Package / Case: Nonstandard
  • Size / Dimension: 0.264" L x 0.264" W (6.70mm x 6.70mm)
  • Inductance: 18 µH
  • Tolerance: ±30%
  • DC Resistance (DCR): 95mOhm Max
  • Current Rating: 1.32 A
  • Operating Temperature: -40°C ~ 100°C
