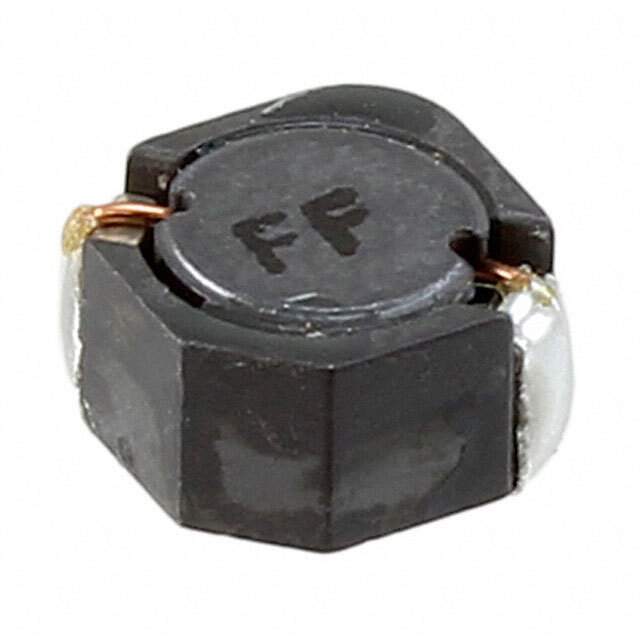

CDRH4D28CLDNP-220PC Real Image
Same model may have multiple batches, images only for reference.

CDRH4D28CLDNP-220PC

Part No CDRH4D28CLDNP-220PC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.25A 140 MOHM
Datasheet
CDRH4D28CLDNP-220PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 22μH
Tolerance ±25%
Current Rating 1.25A
Current - Saturation 650mA
DC Resistance (DCR) 140 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 202494-CDRH4D28CLDNP-220PC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH4D28CLDNP-220PC CAD Model

Description

CDRH4D28CLDNP-220PC Power Inductor

The CDRH4D28CLDNP-220PC is a power inductor designed for efficiency and reliability in power management applications. It offers excellent inductance stability and low electromagnetic interference, which is crucial for sensitive electronic environments.

  • Applications and Projects:
    • Power supply circuits
    • Signal processing devices
    • Telecommunications equipment
  • Features and Benefits:
    • High efficiency with low power loss
    • Robust mechanical structure
    • Excellent temperature characteristics
  • Additional Details:
    • Inductance: 22μH
    • Dimensions: 4.7mm x 4.7mm x 2.8mm
    • Operating temperature: -40°C to 85°C
