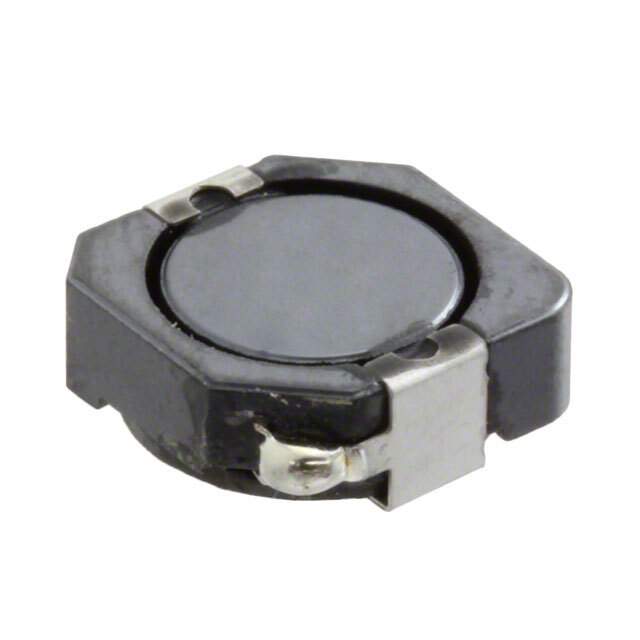

Same model may have multiple batches, images only for reference.

CDRH104RNP-331NC

Name: CDRH104RNP-331NC
Brand: Sumida America Components Inc.
SKU: 1167482
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CDRH104RNP-331NC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 330UH 520MA 1.09OHM SM / 330 µH Shielded Inductor 520 mA 1.09Ohm Max Nonstandard
Datasheet	CDRH104RNP-331NC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	CDRH104R
Package	Tape & Reel
Material - Core	Ferrite
Inductance	330 µH
Tolerance	±30%
Current Rating (Amps)	520 mA
Current - Saturation (Isat)	700mA
Shielding	Shielded
DC Resistance (DCR)	1.09Ohm Max
Temperature Range - Operating	-40°C ~ 100°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	308-2169-6,CDRH104RNP-331NCTR,308-2169-1,308-2169-2,CDRH104RNP-331NCTR-ND
Standard Package	1,000
Win Source Part Number	1167482-CDRH104RNP-331NC
Ultra Librarian 3D Model	Ultra Librarian CDRH104RNP-331NC CAD Model

Alternative Products

Description

Sumida America Components Inc. CDRH104RNP-331NC is a fixed inductor that falls under the category of inductors, coils, chokes. The product has a height of 0.157" (4.00mm) and a standard package of 1,000. The product is shielded and has an inductance of 330 µH. The tolerance of the product is ±30% and the DC resistance (DCR) is 1.09Ohm Max. The product is designed to meet the specific needs of electronic components.
