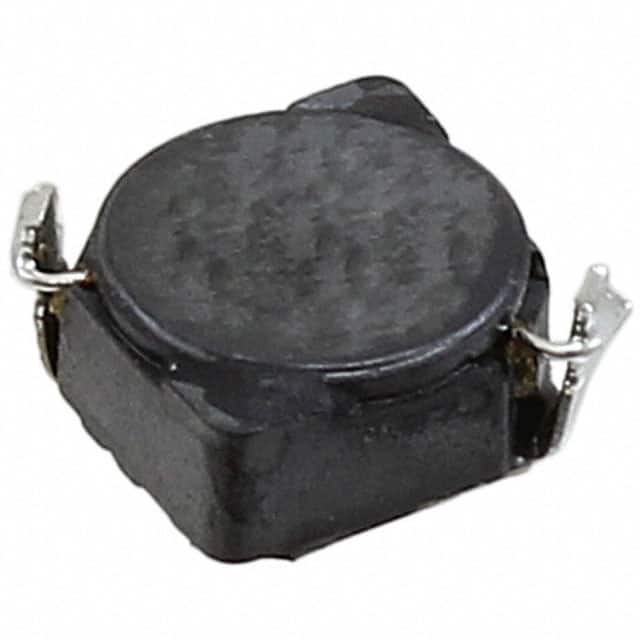

CDRH4D22NP-4R7NC
Same model may have multiple batches, images only for reference.

CDRH4D22NP-4R7NC

Part No CDRH4D22NP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.08A 55.9 MOHM / 4.7 μH Shielded Inductor 2.08 A 55.9mOhm Max Nonstandard
Datasheet
CDRH4D22NP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH4D22
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±30%
Current Rating (Amps) 2.08 A
Current - Saturation (Isat) 1.1A
Shielding Shielded
DC Resistance (DCR) 55.9mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Max) 0.094" (2.40mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 866254-CDRH4D22NP-4R7NC
Ultra Librarian 3D Model Ultra Librarian CDRH4D22NP-4R7NC CAD Model

Description

The CDRH4D22NP-4R7NC is a fixed inductor from Sumida America Components Inc.

  • Series: CDRH4D22
  • Size: 0.185" L x 0.185" W (4.70mm x 4.70mm)
  • Type: Shielded
  • Inductance: 4.7 µH
  • Seated Height (Max): 0.094" (2.40mm)
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • DC Resistance (DCR): 55.9mOhm Max
  • Tolerance: ±30%
  • Operating Temperature Range: -40°C to 100°C
  • Current Rating: 2.08 A
