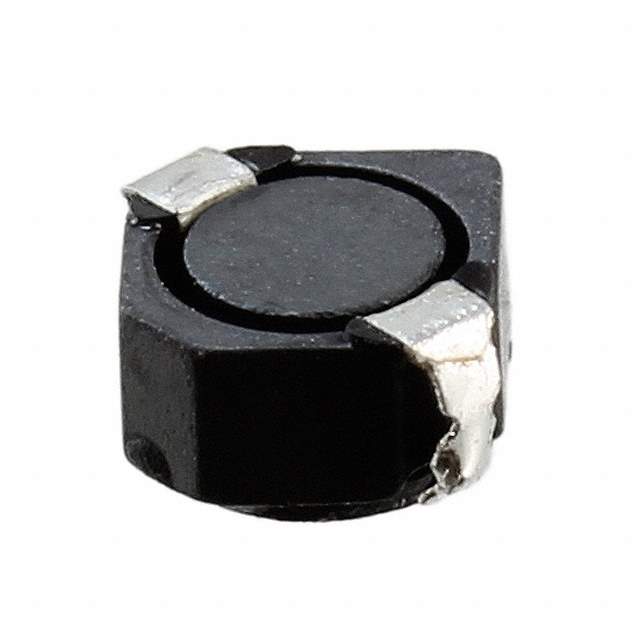

CDRH3D23NP-1R0PC Real Image
Same model may have multiple batches, images only for reference.

CDRH3D23NP-1R0PC

Part No CDRH3D23NP-1R0PC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 3.1A 25 MOHM SMD
Datasheet
CDRH3D23NP-1R0PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 1μH
Tolerance ±25%
Current Rating 3.1A
Current - Saturation 2.8A
DC Resistance (DCR) 25 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.098" (2.50mm)
Win Source Part Number 050239-CDRH3D23NP-1R0PC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDRH3D23NP-1R0PC CAD Model

Description

CDRH3D23NP-1R0PC Description

The CDRH3D23NP-1R0PC is characterized by its low resistance path and strong inductance, catering to the demands of cutting-edge technology applications. Its precision engineering ensures optimized performance in power management systems.

Features and Benefits

  • Inductance: 1.0μH
  • Excellent DC resistance values
  • High current handling
  • Compact and lightweight
  • Superior Q factor

Applications

  • Switching regulators
  • Smartphone components
  • Memory power supplies
  • Broadcasting equipment
  • Networking devices

Additional Details

The superior electromagnetic shielding of the CDRH3D23NP-1R0PC assures reduced noise interference, leading to more efficient and reliable electronics.
