Same model may have multiple batches, images only for reference.

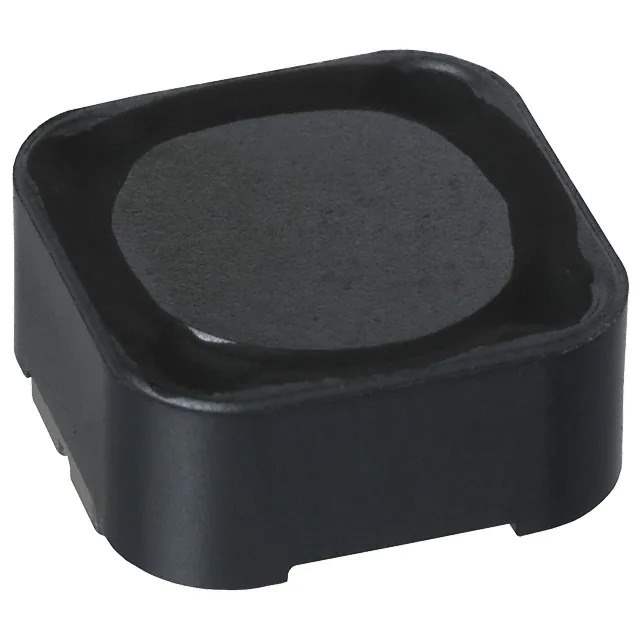

CDRH125NP-471MC Real Image
Same model may have multiple batches, images only for reference.

CDRH125NP-471MC

Part No CDRH125NP-471MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 470UH 580MA 770MOHM SM / 470 μH Shielded Inductor 580 mA 770mOhm Max Nonstandard
Datasheet
CDRH125NP-471MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH125
Package Tape & Reel
Product Status Active
Inductance 470 µH
Tolerance ±20%
Current Rating (Amps) 580 mA
Shielding Shielded
DC Resistance (DCR) 770mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 915234-CDRH125NP-471MC
Ultra Librarian 3D Model Ultra Librarian CDRH125NP-471MC CAD Model

Description

The CDRH125NP-471MC is a fixed inductor from the CDRH125 series by Sumida America Components Inc.

  • Series: CDRH125
  • Type: Shielded
  • Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Inductance: 470 μH
  • Tolerance: ±20%
  • Height: 0.236" (6.00mm) Max
  • DCR: 770mOhm
  • Mounting: Surface Mountable
  • Package: Nonstandard
  • Current Rating: 580 mA
  • Isat: Not specified
  • Operating Temperature: -40°C to 100°C
