Same model may have multiple batches, images only for reference.

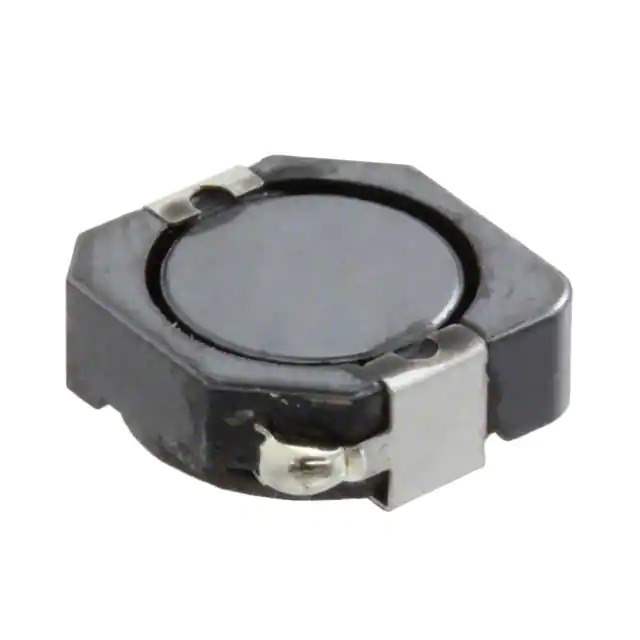

CDRH104RNP-221NC Real Image
Same model may have multiple batches, images only for reference.

CDRH104RNP-221NC

Part No CDRH104RNP-221NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 220UH 700MA 756MOHM SM
Datasheet
CDRH104RNP-221NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH104R
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 220 µH
Tolerance ±30%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 920mA
Shielding Shielded
DC Resistance (DCR) 756mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578122-CDRH104RNP-221NC
Ultra Librarian 3D Model Ultra Librarian CDRH104RNP-221NC CAD Model

Description

The CDRH104RNP-221NC is a shielded fixed inductor from Sumida America Components Inc.

  • Series: CDRH104R
  • Application: Inductors, Coils, and Chokes
  • Packaging: Tape & Reel
  • Size / Dimension: 0.402" L x 0.394" W (10.20mm x 10.00mm)
  • Inductance: 220 µH
  • Height: 0.157" (4.00mm)
  • DC Resistance (DCR): 756mOhm Max
  • Operating Temperature: -40°C to 100°C
  • Current Rating: 700 mA
  • Manufacturer: Sumida America Components Inc.
  • Product Status: Active
