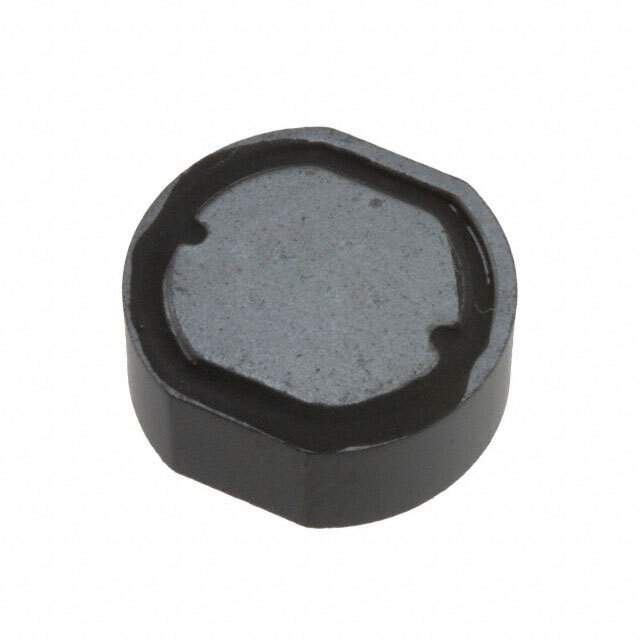

Same model may have multiple batches, images only for reference.

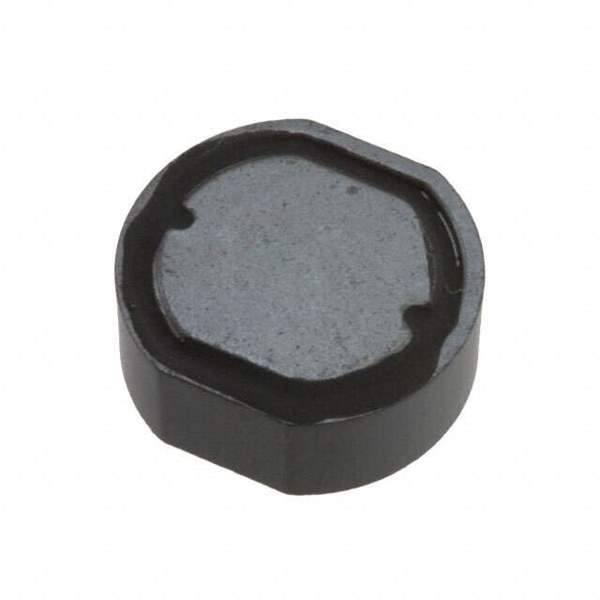

CDR125NP-220MC Real Image
Same model may have multiple batches, images only for reference.

CDR125NP-220MC

Part No CDR125NP-220MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Power Inductors
Datasheet
CDR125NP-220MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDR125
Packaging Reel - TR
Inductance 22μH
Tolerance -15%, +20%
Current Rating 2.2A
Shielding Shielded
DC Resistance (DCR) 70 mOhm Max
Frequency - Self Resonant 15.2MHz
Operating Temperature Range -40°C ~ 100°C
Test Frequency 2.52MHz
Mounting SMD
Package Nonstandard
Size 0.496" L x 0.457" W (12.60mm x 11.60mm)
Height - Seated (Maximum) 0.232" (5.90mm)
Win Source Part Number 1160801-CDR125NP-220MC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDR125
Introduction Date October 09, 2001
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDR125NP-220MC CAD Model

Description

The CDR125NP-220MC inductor is a shielded SMD device designed to provide high performance and reliability in a variety of applications and is from Sumida America Components Inc.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Inductance: 22μH
  • Current Rating: 2.2A
  • Tolerance: -15%, +20%
  • DC Resistance: 70 mOhm max
  • Package: Nonstandard
  • Size: 0.496" L x 0.457" W (12.60mm x 11.60mm)
  • Manufacturer: Sumida America Components Inc.
