Same model may have multiple batches, images only for reference.

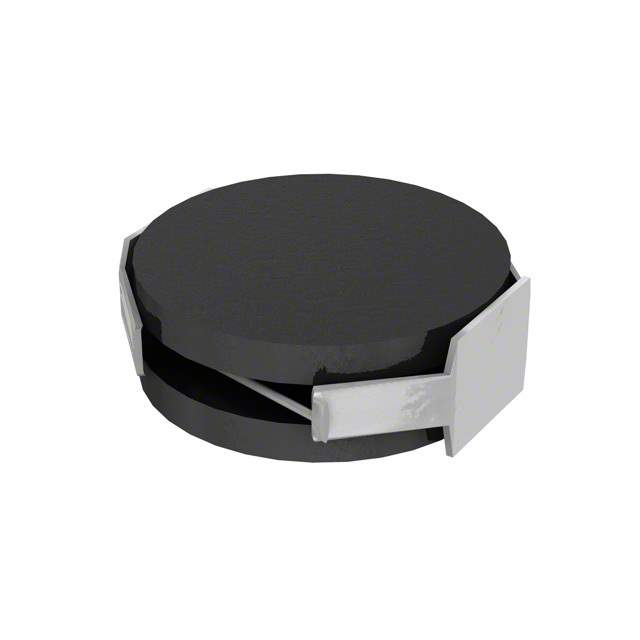

CDH2D09BNP-2R4MC Real Image
Same model may have multiple batches, images only for reference.

CDH2D09BNP-2R4MC

Part No CDH2D09BNP-2R4MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.4UH 1.18A 160 MOHM
Datasheet
CDH2D09BNP-2R4MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 2.4μH
Tolerance ±20%
Current Rating 1.18A
Current - Saturation 1A
DC Resistance (DCR) 160 mOhm Max
Temperature Range - Operating -40°C to 105°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 202446-CDH2D09BNP-2R4MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDH2D09BNP-2R4MC CAD Model

Description

Product Overview

The CDH2D09BNP-2R4MC presents a versatile solution for engineers seeking an efficient and robust inductor for varied electronic projects. Built to withstand challenging conditions, it delivers consistent results across a wide frequency range.

Features and Benefits

  • Small footprint for easy integration into compact circuits.
  • High saturation current provides stability under heavy loads.
  • Robust construction enhances durability.
  • Excellent thermal management supports efficient operation.

Applications

  • Consumer electronics
  • Switching regulators
  • Automotive electronics
  • RF modules
