Same model may have multiple batches, images only for reference.

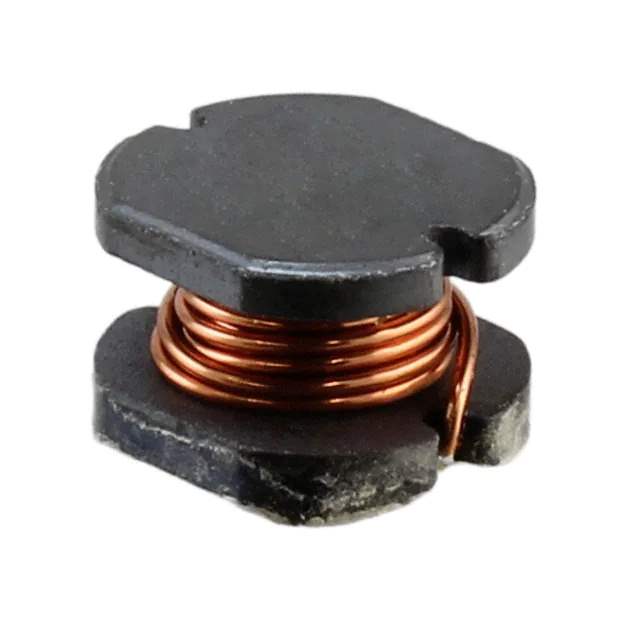

CD75NP-101KC Real Image
Same model may have multiple batches, images only for reference.

CD75NP-101KC

Part No CD75NP-101KC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 720MA 430MOHM SM
Datasheet
CD75NP-101KC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CD75
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 100 µH
Tolerance ±10%
Current Rating (Amps) 720 mA
Shielding Unshielded
DC Resistance (DCR) 430mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 1 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 577743-CD75NP-101KC
Ultra Librarian 3D Model Ultra Librarian CD75NP-101KC CAD Model

Description

The CD75NP-101KC is an unshielded fixed inductor from Sumida America Components Inc.

  • Series: CD75
  • Application: inductors, coils, and chokes
  • Package: tape & reel
  • Size / Dimension: 0.307" L x 0.276" W (7.80mm x 7.00mm)
  • Inductance: 100 µH
  • Maximum Seated Height: 0.217" (5.50mm)
  • DC Resistance (DCR): 430mOhm Max
  • Operating Temperature: -40°C to 100°C
  • Current Rating: 720 mA
  • Status: currently active
