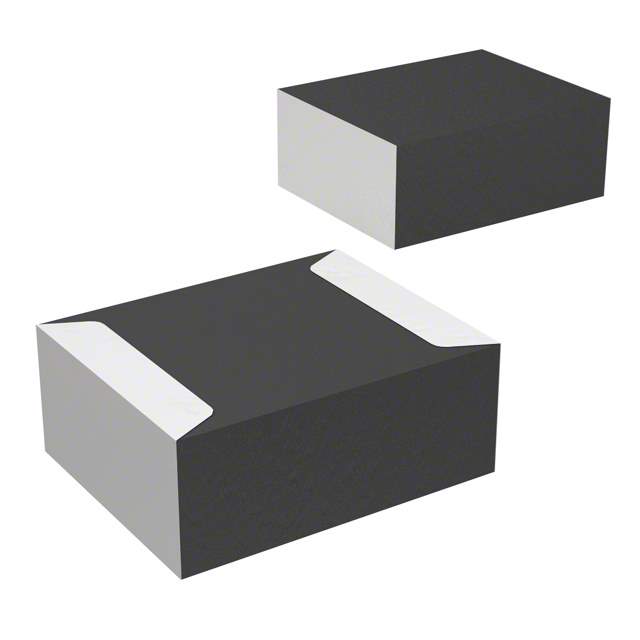

252012CDMCDDS-2R2MC Real Image1 252012CDMCDDS-2R2MC Real Image2
Same model may have multiple batches, images only for reference.
252012CDMCDDS-2R2MC Real Image1 252012CDMCDDS-2R2MC Real Image2
252012CDMCDDS-2R2MC Real Image1 252012CDMCDDS-2R2MC Real Image2
Same model may have multiple batches, images only for reference.

252012CDMCDDS-2R2MC

Part No 252012CDMCDDS-2R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 3A 82 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series 252012CDMCD/DS
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal Composite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 2.8A
Shielding Shielded
DC Resistance (DCR) 82mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370282-252012CDMCDDS-2R2MC
Ultra Librarian 3D Model Ultra Librarian 252012CDMCDDS-2R2MC CAD Model

Description

The 252012CDMCDDS-2R2MC is a fixed inductor from Sumida America Components Inc.

  • Mounting Type: Surface Mount
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Inductance: 2.2µH
  • Current Rating: 3A
  • Shielded: Yes
  • DC Resistance (Max): 82mOhm
  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
  • Status: Active
  • ECCN: EAR99
