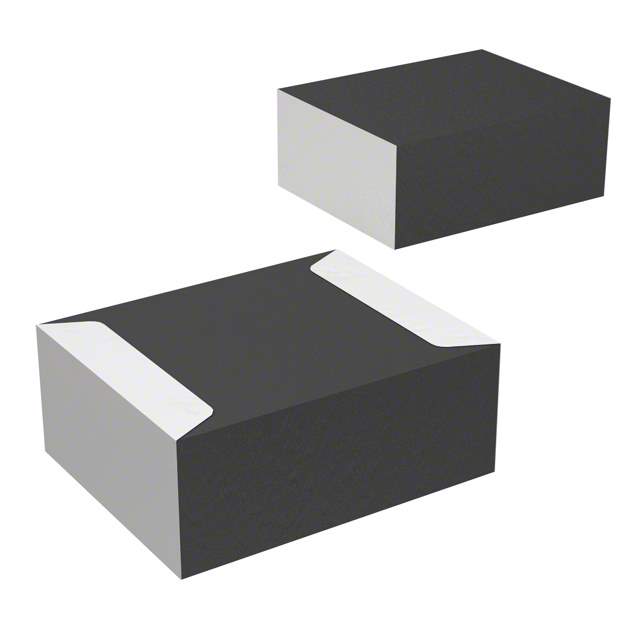

Same model may have multiple batches, images only for reference.

252012CDMCDDS-1R5MC

Name: 252012CDMCDDS-1R5MC
Brand: Sumida America Components Inc.
SKU: 1194058
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	252012CDMCDDS-1R5MC
Manufacturer	Sumida America Components Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 3.6A 61 MOHM SMD / 1.5 µH Shielded Molded Inductor 3.6 A 61mOhm Max 1008 (2520 Metric)
Datasheet	252012CDMCDDS-1R5MC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Sumida America Components Inc.
Series	252012CDMCD/DS
Package	Tape & Reel
Type	Molded
Material - Core	Metal Composite
Inductance	1.5 µH
Tolerance	±20%
Current Rating (Amps)	3.6 A
Current - Saturation (Isat)	3.1A
Shielding	Shielded
DC Resistance (DCR)	61mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008
Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	308-2604-6,308-2604-1,308-2604-2
Standard Package	3,000
Win Source Part Number	1194058-252012CDMCDDS-1R5MC
Ultra Librarian 3D Model	Ultra Librarian 252012CDMCDDS-1R5MC CAD Model

Alternative Products

Description

The 252012CDMCD/DS series molded inductor is a shielded inductor that is designed for use in a variety of electronic applications.

Inductance: 1.5 µH
Tolerance: ±20%
Core Material: Metal Composite
DC Resistance: 61mOhm Max
Package: 1008 (2520 Metric)
Mounting: SMD (SMT)
Height: 0.047" (1.20mm)
Current Rating: 3.6 A
Current Saturation: 3.1A
Operating Temperature: -55°C ~ 125°C
Manufacturer: Sumida America Components Inc.
Alternative Names: 308-2604-6, 308-2604-1, and 308-2604-2
