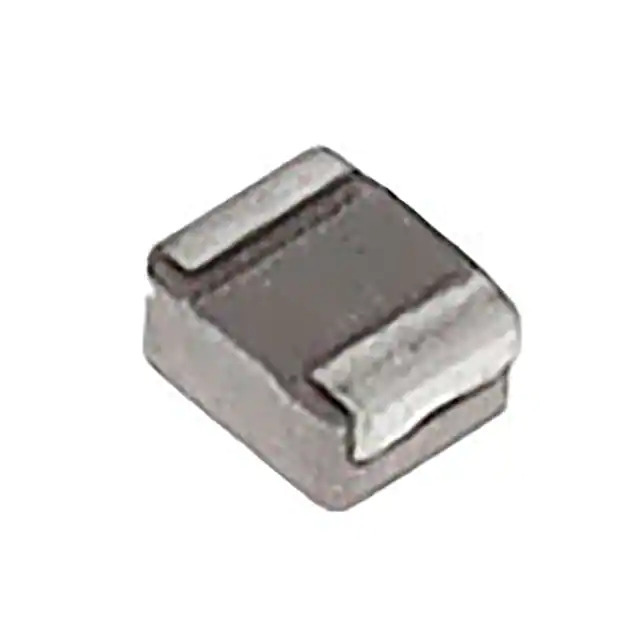

Same model may have multiple batches, images only for reference.

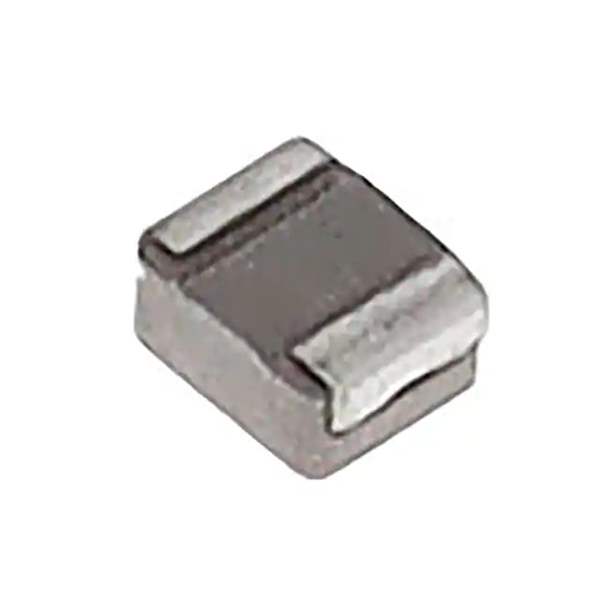

201610CDMCDDS-R24MC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

201610CDMCDDS-R24MC

Part No 201610CDMCDDS-R24MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 240NH 6.3A 20 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series 201610CDMCD/DS
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Metal Composite
Inductance 240 nH
Tolerance ±20%
Current Rating (Amps) 6.3 A
Current - Saturation (Isat) 6.1A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370355-201610CDMCDDS-R24MC
Ultra Librarian 3D Model Ultra Librarian 201610CDMCDDS-R24MC CAD Model

Description

The 201610CDMCD/DS series from Sumida America Components Inc. is a molded fixed inductor.

  • Temperature Range: -55°C to 125°C
  • Packaging: Tape and Reel
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.039" (1.00mm)
  • Inductance: 240 nH
  • Current Rating: 6.3 A
  • Saturation Current: 6.1A
  • Shielded: Yes
  • DC Resistance: 20mOhm
  • Tolerance: ±20%
  • Core Material: Metal Composite
