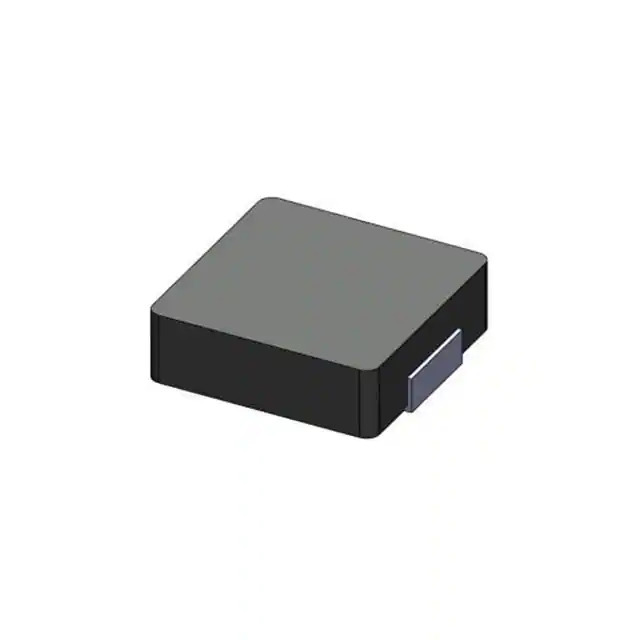

0518CDMCCDS-R10MC Sumida America Components Inc.
Same model may have multiple batches, images only for reference.

0518CDMCCDS-R10MC

Part No 0518CDMCCDS-R10MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 100NH 20A 3.1MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series 0518CDMCC/DS
Package Tape & Reel (TR)
Product Status Active
Type Molded
Material - Core Metal
Inductance 100 nH
Tolerance ±20%
Current Rating (Amps) 20 A
Current - Saturation (Isat) 25A
Shielding Shielded
DC Resistance (DCR) 3.1mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.213" L x 0.205" W (5.40mm x 5.20mm)
Height - Seated (Max) 0.071" (1.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370662-0518CDMCCDS-R10MC
Ultra Librarian 3D Model Ultra Librarian 0518CDMCCDS-R10MC CAD Model

Description

The 1370662-0518CDMCCDS-R10MC is a molded fixed inductor manufactured by Sumida America Components Inc.

  • Series: 0518CDMCC/DS
  • Package: Nonstandard
  • Temperature Range: -55°C to 125°C
  • Tolerance: ±20%
  • Size: 0.213" L x 0.205" W (5.40mm x 5.20mm)
  • Seated Height: 0.071" (1.80mm)
  • Core: Metal
  • Shielding: Shielded
  • Inductance: 100nH
  • Current Rating: 20A
  • Saturation Current: 25A
  • DC Resistance: 3.1mOhm maximum
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Product Status: Active
  • HTSUS Code: 8504.50.8000
