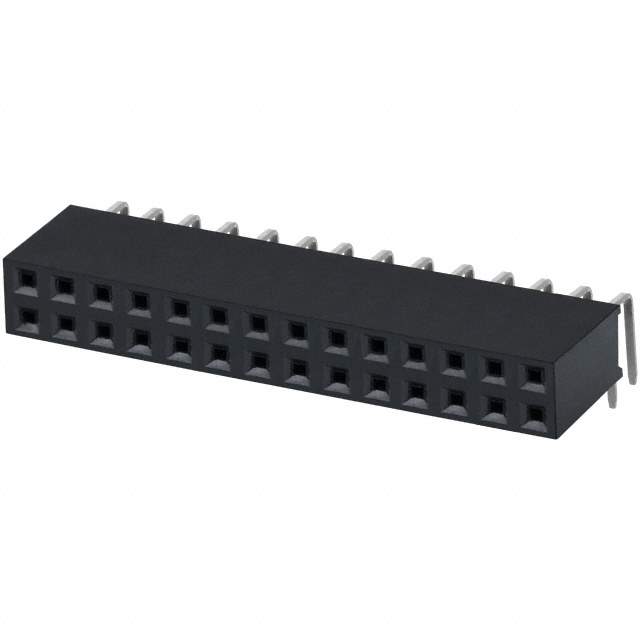

Same model may have multiple batches, images only for reference.

PPTC142LJBN

Name: PPTC142LJBN
Brand: Sullins Connector Solutions
SKU: 793635
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PPTC142LJBN
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN FEMALE 28POS DL .1" R/A TIN / Conn Socket Strip F 28 POS 2.54mm Solder RA Thru-Hole
Datasheet	PPTC142LJBN Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Sullins Connector Solutions
Packaging	Bulk
Part Status	Obsolete(EOL)
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	28
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.200" (5.08mm)
Contact Length - Post	0.124" (3.15mm)
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating	3A
Voltage Rating	250V
Insulation Material	Polyester
Contact Shape	Square
Contact Material	Phosphor Bronze
Win Source Part Number	793635-PPTC142LJBN
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PP
Introduction Date	March 31, 2004
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	Not Applicable
Ultra Librarian 3D Model	Ultra Librarian PPTC142LJBN CAD Model

Alternative Products

Description

The Sullins Connector Solutions PPTC142LJBN is a 28-position female socket header connector with a black insulation color.

Pitch-Mating: 0.100" (2.54mm)
Row Spacing-Mating: 0.100" (2.54mm)
Contact Length-Post: 0.124" (3.15mm)
Insulation Height: 0.200" (5.08mm)
Operating Temperature Range: -40°C ~ 105°C
Voltage Rating: 250V
Current Rating: 3A
Material Flammability Rating: UL94 V-0
Termination: Solder
Application: Board-to-Board
