Same model may have multiple batches, images only for reference.

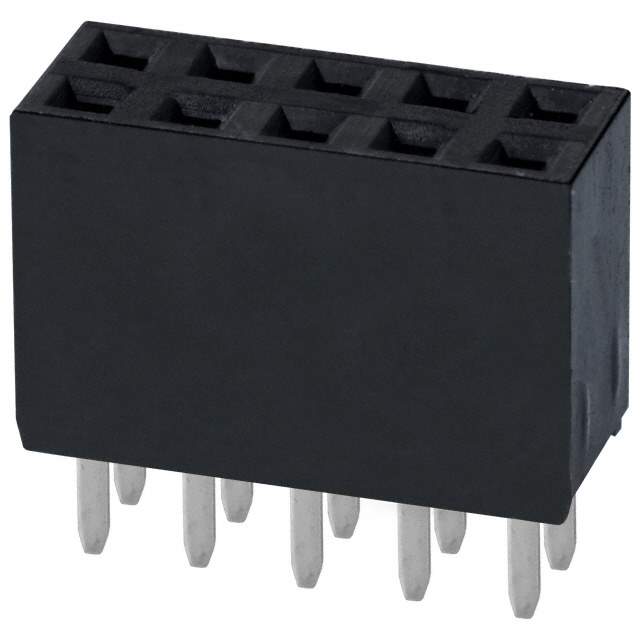

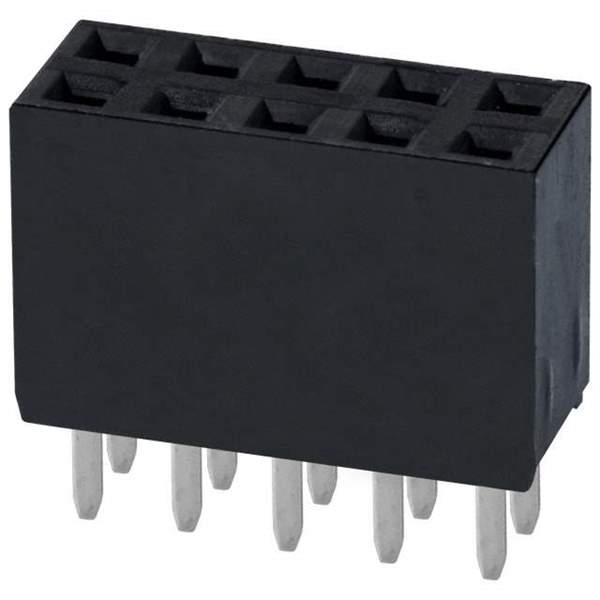

PPTC052LFBN Real Image
Same model may have multiple batches, images only for reference.

PPTC052LFBN

Part No PPTC052LFBN
Manufacturer Sullins Connector Solutions
Catalog Rectangular Connectors
Description CONN HEADER FEM 10POS .1" DL TIN / Conn Socket Strip F 10 POS 2.54mm Solder ST Thru-Hole
Datasheet
PPTC052LFBN Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Sullins Connector Solutions
Packaging Bulk
Part Status Obsolete(EOL)
Connector Type Header
Contact Type Female Socket
Style Board to Board
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.126" (3.20mm)
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating 3A
Voltage Rating 250V
Insulation Material Polyester
Contact Shape Square
Contact Material Phosphor Bronze
Win Source Part Number 793633-PPTC052LFBN
Popularity Medium
Supply and Demand Status Limited
Family Name PP
Introduction Date March 31, 2004
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian PPTC052LFBN CAD Model

Description

The Sullins Connector Solutions PPTC052LFBN is a header connector suitable for use in board to board applications.

  • Number of Positions: 10
  • Packaging: Bulk
  • Pitch: 0.100" (2.54mm)
  • Mounting Style: Through Hole
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • EOL Status: Obsolete (EOL)
  • Alternative Parts: 803-87-010-10-001-101, 68682-605, 803-83-010-10-132101, 215311-5
