Same model may have multiple batches, images only for reference.

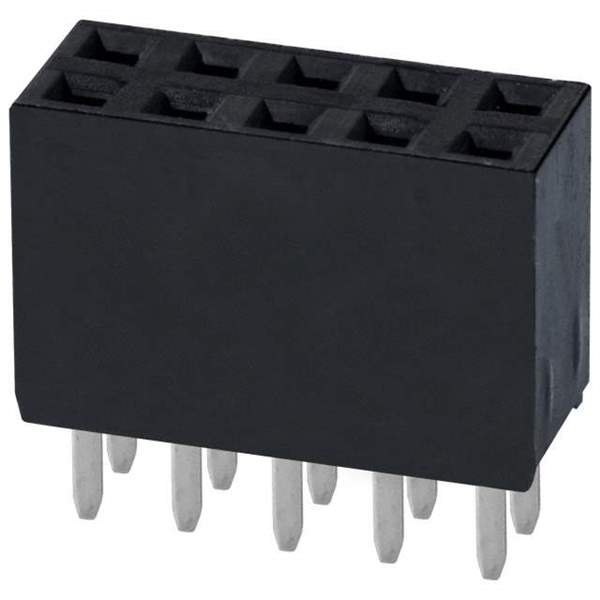

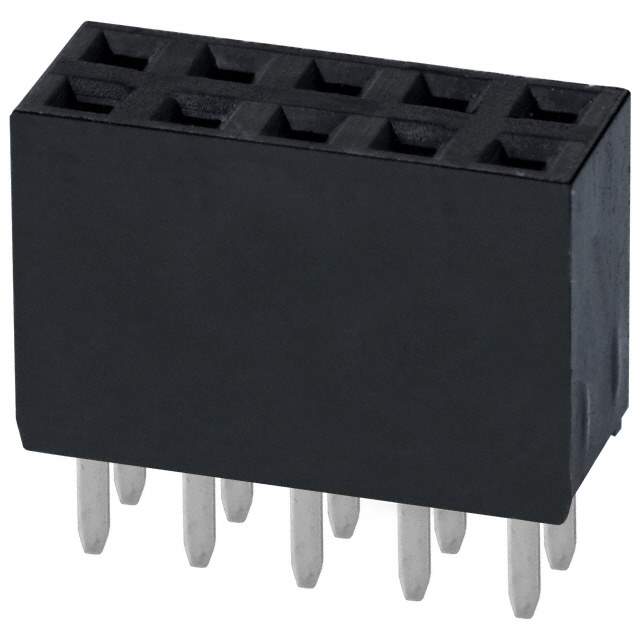

PPTC052LFBN-RC

Name: PPTC052LFBN-RC
Brand: Sullins Connector Solutions
SKU: 1199139
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PPTC052LFBN-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 10POS 0.1 TIN PCB / 10 Position Header Connector 0.100" (2.54mm) Through Hole Tin
Datasheet	PPTC052LFBN-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Package	Tray
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.126" (3.20mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Voltage Rating	250V
Insulation Material	Polyester
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	PPTC052
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	PPTC052LFBNRC,S6105
Standard Package	1
Win Source Part Number	1199139-PPTC052LFBN-RC
Ultra Librarian 3D Model	Ultra Librarian PPTC052LFBN-RC CAD Model

Alternative Products

Description

The PPTC052LFBN-RC is a female socket connector that is part of the rectangular connectors - headers, receptacles, and female sockets category.

Positions: Ten
Rows: Two
Positions Loaded: All
Insulation Material: Polyester
Insulation Color: Black
Style: Board-to-Board
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Temperature Range: -40°C to 105°C
Current Rating: 3A
REACH: Unaffected
ECCN: EAR99
