Same model may have multiple batches, images only for reference.

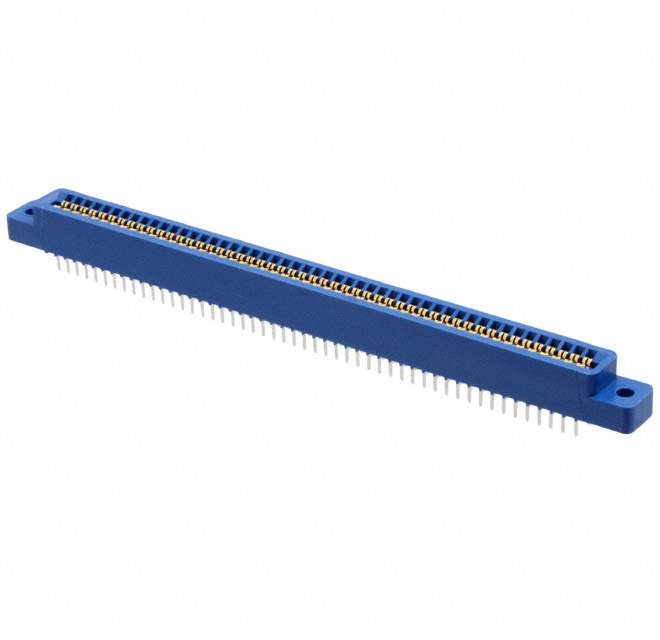

EBC50DRXH Real Image
Same model may have multiple batches, images only for reference.

EBC50DRXH

Part No EBC50DRXH
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 100POS .100 / Conn Card Edge F 100 POS 2.54mm Solder ST Thru-Hole
Datasheet
EBC50DRXH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Sullins Connector Solutions
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 50
Number of Positions 100
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10μin (0.25μm)
Contact Type Full Bellows
Color Blue
Flange Feature Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature Range -65°C ~ 125°C
Material - Insulation Polybutylene Terephthalate (PBT)
Read Out Dual
Win Source Part Number 793605-EBC50DRXH
Popularity Medium
Supply and Demand Status Limited
Family Name EBC
Introduction Date March 31, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EBC50DRXH CAD Model

Description

The EBC50DRXH is a high-quality connector manufactured by Sullins Connector Solutions.

  • Positions: 100
  • Pitch: 0.100 inches (2.54mm)
  • Mounting Style: Through-hole
  • Color: Blue
  • Operating Temperature: -65°C to 125°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 10μin (0.25μm)
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT)
