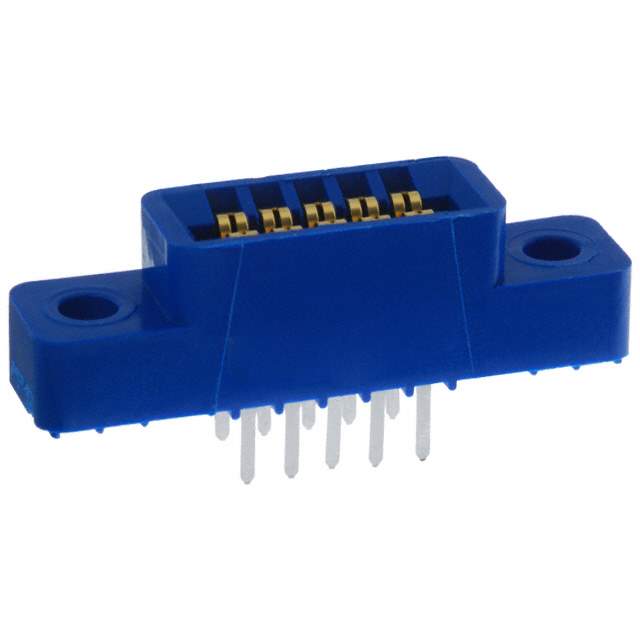

EBC05DRXH Real Image
Same model may have multiple batches, images only for reference.

EBC05DRXH

Part No EBC05DRXH
Manufacturer Sullins Connector Solutions
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 10POS 0.100 / Conn Card Edge F 10 POS 2.54mm Solder ST Thru-Hole
Datasheet
EBC05DRXH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Sullins Connector Solutions
Packaging Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 5
Number of Positions 10
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10μin (0.25μm)
Contact Type Full Bellows
Color Blue
Flange Feature Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature Range -65°C ~ 125°C
Material - Insulation Polybutylene Terephthalate (PBT)
Read Out Dual
Win Source Part Number 793603-EBC05DRXH
Popularity Medium
Supply and Demand Status Limited
Family Name EBC
Introduction Date March 31, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EBC05DRXH CAD Model

Description

The Sullins Connector Solutions EBC05DRXH is a female connector.

  • Color: Blue
  • Mounting Style: Through Hole
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 10μin (0.25μm)
  • Contact Material: Phosphor Bronze
  • Operating Temperature: -65°C ~ 125°C
  • Family Name: EBC
