The VN7020AJTR is a high-performance automotive-grade power MOSFET from STMicroelectronics, designed to handle a wide range of applications requiring high switching efficiency and robustness. This product is part of the VIPower M0-7 series, which is known for its advanced technology in intelligent power switches for automotive applications.

Key Features

• On-state Resistance: The VN7020AJTR boasts a very low on-state resistance, which ensures minimal voltage drop across the switch when it is on, leading to higher efficiency and reduced heat dissipation.
• Current Handling: With the capability to handle continuous current up to several amperes, this component is suitable for driving moderate to high-power loads.
• Protection Features: It includes a multitude of protection features such as over-temperature protection, over-current protection, and load dump voltage surge protection, making it highly reliable in harsh automotive environments.
• Control and Diagnostics: The device offers CMOS-compatible input and diagnostic feedback, which is crucial for microcontroller-based systems to monitor the status of the load.

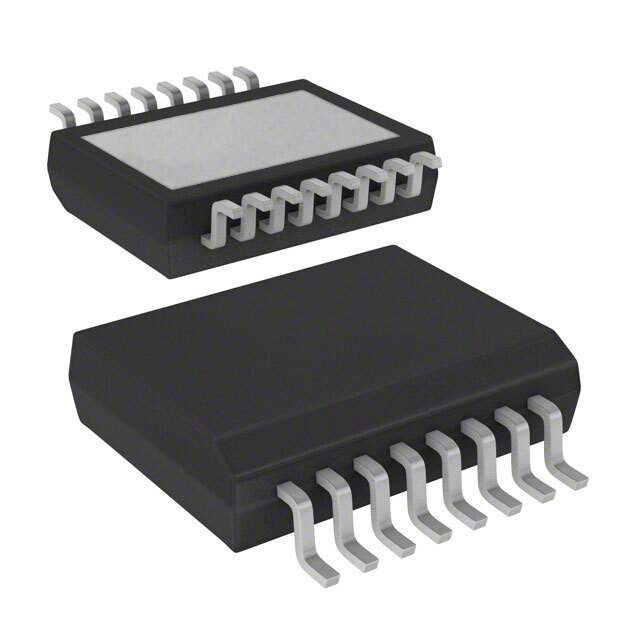

• Package: Housed in a compact and ecologically friendly ECOPACK2 package, the VN7020AJTR is designed to meet the environmental standards, reducing hazardous substances in electronic components.

Applications

The VN7020AJTR is particularly suited for a variety of automotive applications, including but not limited to:

• Automotive lighting systems
• DC motor drives
• Power distribution modules
• Heating, Ventilation, and Air Conditioning (HVAC) systems

Quality and Reliability

STMicroelectronics ensures that the VN7020AJTR meets the stringent requirements of the automotive industry. It is qualified under AEC-Q100, which is a critical standard for automotive integrated circuits, reflecting its high reliability. The device's temperature range also complies with automotive specifications, ensuring performance under extreme conditions.

Conclusion

The VN7020AJTR from STMicroelectronics represents a combination of performance, efficiency, and reliability. Its advanced features and robust protection mechanisms make it an ideal choice for designers looking to create durable and efficient automotive systems.
