The VN5E016MHTR-E from STMicroelectronics is a cutting-edge power MOSFET designed for high-efficiency applications that require low on-resistance and high switching performance. This device is part of the STMicroelectronics' OMNIFET series, renowned for their robust and high-quality power management solutions.

Key Features

• Low On-Resistance: The VN5E016MHTR-E boasts an exceptionally low on-resistance, which minimizes power loss and improves overall efficiency when conducting current.
• High Switching Performance: With its fast switching capabilities, this MOSFET is ideal for applications that require quick transitions between on and off states, such as motor control and power conversion.

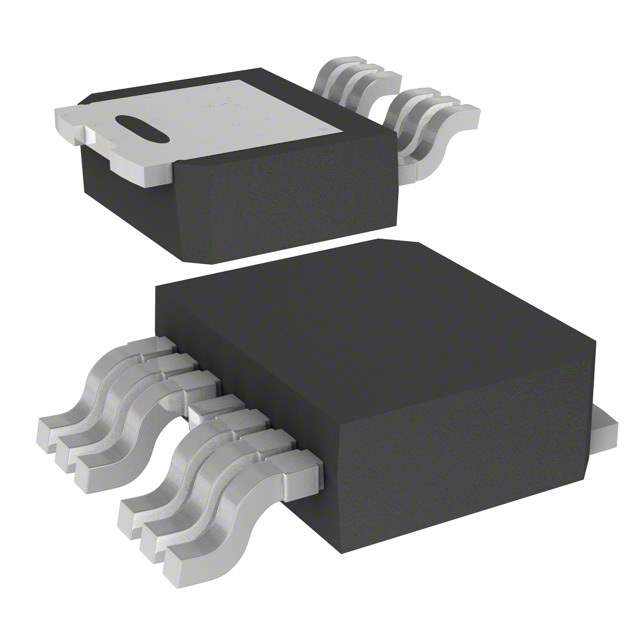

• Thermal Management: The device is encapsulated in a PowerSSO-16 package, which provides excellent thermal performance and ensures stability under high current operation.
• Integrated Protection Features: It includes various protection features such as over-temperature, over-current, and active clamp, enhancing the reliability and longevity of the device.
• Automotive Grade: The VN5E016MHTR-E is qualified under AEC-Q100, making it suitable for automotive applications where reliability and performance under harsh conditions are paramount.

Applications

The VN5E016MHTR-E is versatile and can be used in a wide range of applications. Its robust performance makes it suitable for:

• Automotive systems such as engine control units and LED lighting
• DC-DC converters and power supplies
• Motor control circuits for industrial automation
• Load switching and battery management systems

Technical Specifications

The VN5E016MHTR-E operates over a wide voltage range and has a maximum continuous drain current rating, making it a flexible choice for various power management tasks. It also features logic-level gate drive, which allows for direct interfacing with microcontroller units without the need for additional driver circuits.

With its robust design and comprehensive feature set, the VN5E016MHTR-E is an excellent choice for designers looking for a reliable and efficient power MOSFET solution. STMicroelectronics' commitment to quality ensures that this component will deliver performance and durability for a wide array of electronic applications.
