STPSC2H12D - Silicon Carbide Power Schottky Diode

The STPSC2H12D is a robust silicon carbide power Schottky diode designed by STMicroelectronics, a leader in semiconductor solutions. This diode is specifically engineered to address the demand for high efficiency and improved power density in modern power electronic devices. The STPSC2H12D is an ideal choice for a wide range of applications, including power factor correction (PFC), switch-mode power supplies (SMPS), and solar inverters.

With a blocking voltage of 1200V, the STPSC2H12D ensures safe operation even under high voltage conditions. Its silicon carbide construction provides superior advantages over traditional silicon diodes, such as a reduced forward voltage drop and minimal reverse recovery charge. This results in lower power losses and enhanced thermal performance, making the device suitable for high-frequency and high-temperature applications.

The diode features an extremely fast switching speed, which contributes to increased system efficiency and reduced electromagnetic interference (EMI). The STPSC2H12D's robustness is further highlighted by its high surge current capability, providing reliable performance during transient conditions.

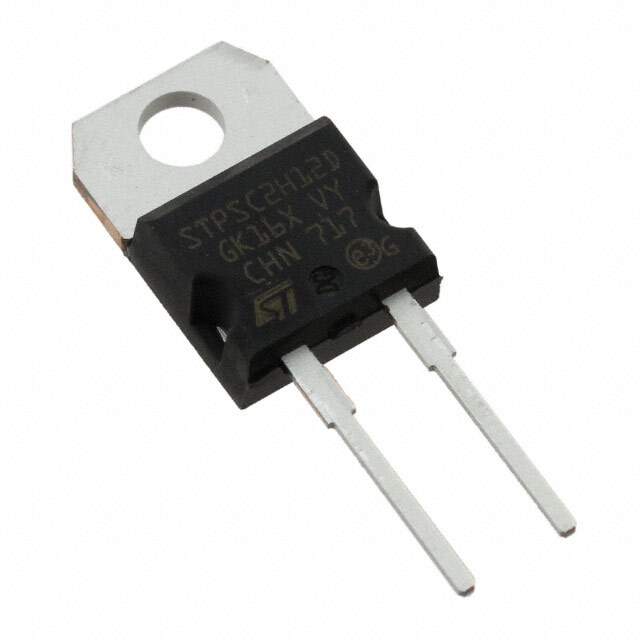

STMicroelectronics has packaged the STPSC2H12D in a TO-220AC package, which is widely used and easy to integrate into various circuit designs. The package ensures good heat dissipation and simplifies the thermal management of the device. The diode is also characterized by a low thermal resistance, contributing to its overall reliability and longevity.

Key features of the STPSC2H12D include:

• 1200V blocking voltage capability
• Low forward voltage drop and reduced switching losses
• No reverse recovery charge (Qrr)
• High surge current capability
• TO-220AC package for optimal heat dissipation
• High-frequency operation with minimal EMI

In conclusion, the STPSC2H12D from STMicroelectronics is a state-of-the-art power Schottky diode that offers exceptional performance in a wide array of high-voltage and high-power applications. Its silicon carbide technology ensures that designers can achieve more efficient, compact, and reliable power conversion systems.
