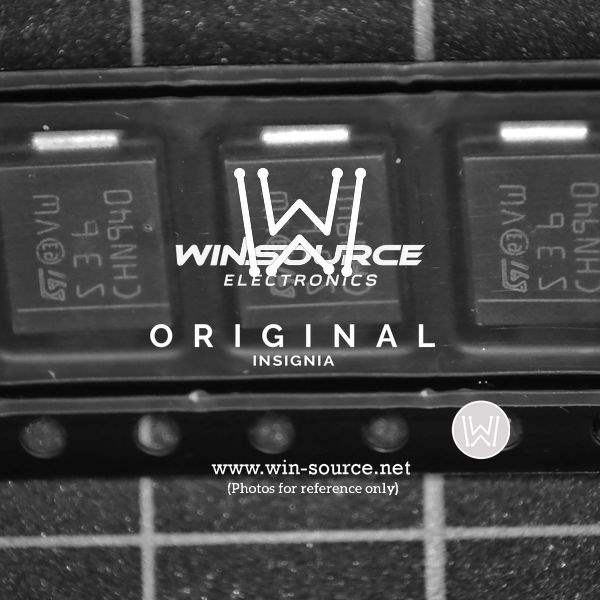

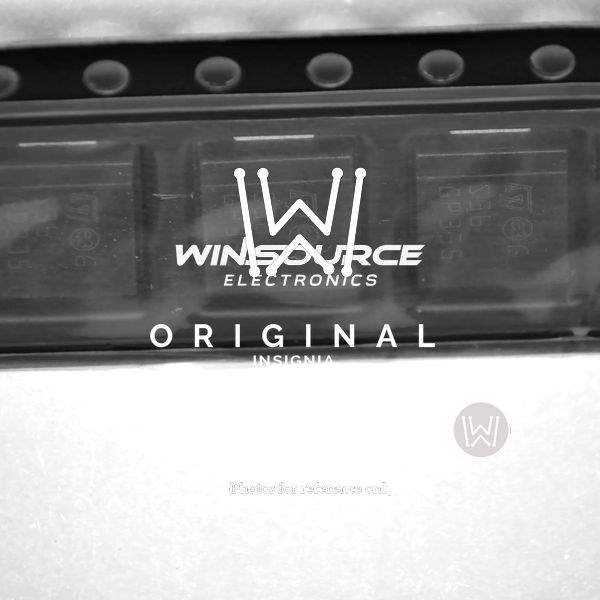

The STPS3L60S is a high-efficiency power Schottky rectifier designed by STMicroelectronics, a leader in semiconductor solutions. This rectifier is particularly suited for use in switching power supplies, converters, freewheeling diodes, and reverse battery protection applications. Its low forward voltage drop and high current capability ensure enhanced system efficiency and minimal power loss during operation.

Key Features

• High Junction Temperature: Capable of operating at high temperatures, the STPS3L60S has a maximum junction temperature of 150°C, making it suitable for strenuous conditions.
• Low Forward Voltage Drop: The device provides a very low forward voltage drop (Vf) which significantly reduces power dissipation and improves efficiency.
• Average Forward Current: Offers a high average forward current of 3 A, allowing it to handle significant power levels in compact form factors.
• High Surge Capability: Designed with a high surge current capability, this rectifier is able to withstand high surge currents without damage, enhancing its reliability and robustness.
• Power Pack: The STPS3L60S comes in a slim package, making it ideal for space-constrained applications.

Applications

The STPS3L60S is versatile and can be used in a wide range of applications. Its main uses include:

• Switching power supplies
• DC/DC converters
• Free-wheeling diodes in converters and motor control circuits
• Reverse battery protection

Environmental and Safety Compliance

STMicroelectronics is committed to environmental stewardship and ensuring that its products meet the latest environmental standards. The STPS3L60S complies with RoHS (Restriction of Hazardous Substances) and is designed to be used in applications that require lead-free components.

Conclusion

The STPS3L60S Schottky rectifier from STMicroelectronics is an excellent choice for designers looking for a reliable, high-performance solution to enhance the efficiency of their power management systems. Its robustness, coupled with high thermal performance and compliance with environmental standards, makes it a forward-thinking choice for a multitude of electronic applications.
