The STPS2170AFN, crafted by the renowned semiconductor manufacturer STMicroelectronics, is a high-efficiency power Schottky rectifier designed to meet the rigorous demands of modern electronic applications. This component is particularly well-suited for use in switch-mode power supplies, high-frequency DC to DC converters, and as free-wheeling diodes, which are essential in reducing switching losses in various power management systems.

Key Features

• Low Forward Voltage Drop: The STPS2170AFN boasts a low forward voltage drop which ensures reduced power loss and improved efficiency, making it ideal for high-efficiency power conversion applications.
• High Junction Temperature Capability: With an ability to operate at high temperatures, this power Schottky rectifier can sustain reliable performance even under thermal stress, extending its suitability to a wide range of industrial applications.
• Avalanche Rated: This device is designed to handle transient voltage spikes, providing robust protection against power surges and enhancing the durability of the end application.
• Low Leakage Current: The minimized reverse leakage current of the STPS2170AFN is a critical feature that contributes to the overall low power consumption of the system in which it is used.

Applications

• Switch-mode power supplies (SMPS)
• High-frequency DC/DC converters
• Free-wheeling diodes
• Power management devices
• Reverse battery protection

Package and Quality Assurance

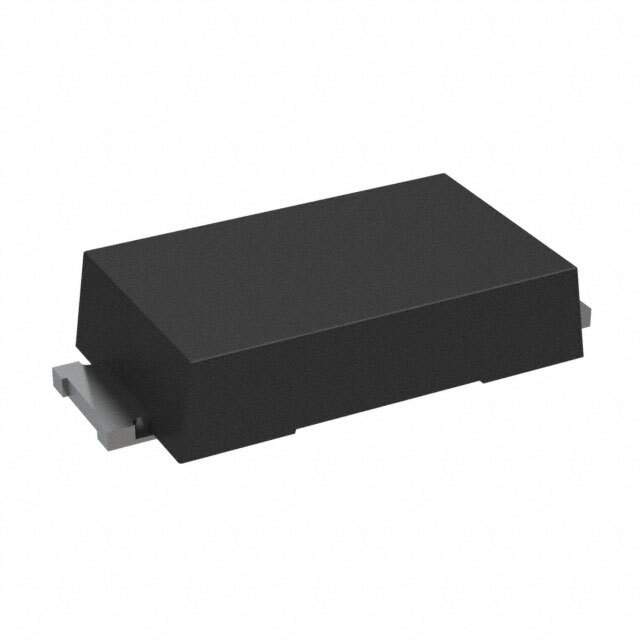

The STPS2170AFN is encapsulated in a robust package that ensures its integrity and longevity in various environments. STMicroelectronics is committed to delivering high-quality products, and this Schottky rectifier is no exception. It is produced in compliance with stringent industry standards, and each device is subjected to rigorous testing to ensure its performance and reliability.

In summary, the STPS2170AFN from STMicroelectronics is a versatile and reliable component that offers designers a combination of efficiency, thermal performance, and protection features, making it an excellent choice for a broad spectrum of power rectification applications.
