The STPS1230SF is a robust and high-performance Schottky rectifier designed by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology and solutions. This rectifier is part of their STPS series, which is renowned for its low forward voltage drop and high efficiency, making it an ideal choice for a variety of power conversion applications.

Key Features

• High Junction Temperature: The device features a maximum junction temperature of 150°C, which enables reliable operation even under high-temperature conditions.
• Low Forward Voltage Drop: With its Schottky barrier technology, the STPS1230SF ensures a low forward voltage drop, reducing power loss and improving efficiency.
• High Average Forward Current: The rectifier has a high average forward current rating of 12 A, making it suitable for handling significant power levels.

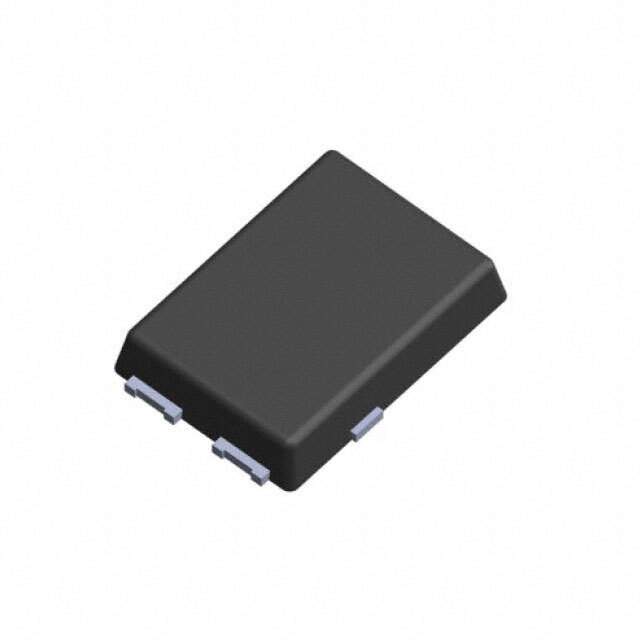

• Surface Mount Package: The STPS1230SF comes in a surface-mount DO-263 package, which is ideal for compact and high-density circuit designs.

Applications

The STPS1230SF is versatile and can be used in various applications, including:

• Switch Mode Power Supplies (SMPS)
• DC-DC converters
• Free-wheeling diodes in converters and motor control circuits
• Power management systems
• Automotive applications

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STPS1230SF is manufactured with the highest standards, ensuring both reliability and performance. It is designed to meet the stringent requirements of industrial and automotive-grade applications, providing a dependable solution for power rectification needs.

Environmental Compliance

Consistent with STMicroelectronics' dedication to environmental stewardship, the STPS1230SF complies with RoHS and REACH regulations. This commitment ensures that the product is free from hazardous substances, making it a safe choice for electronic manufacturers who are conscious about their environmental impact.
