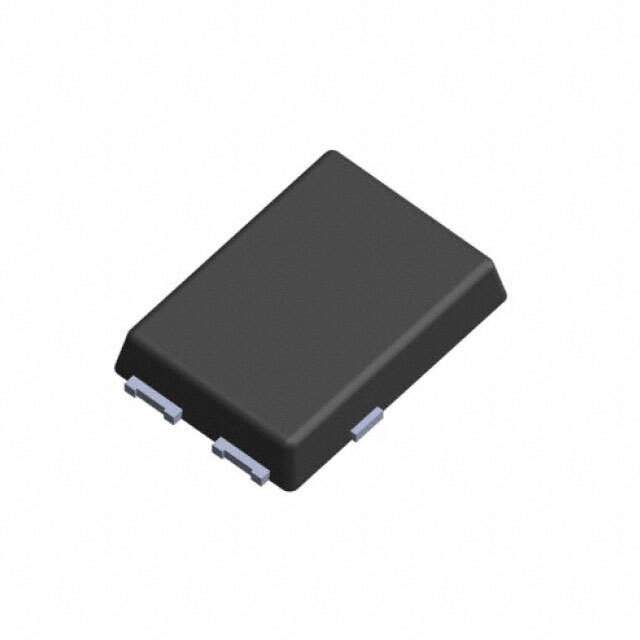

STPS10M60SF Power Schottky Rectifier

The STPS10M60SF from STMicroelectronics is a robust and efficient power Schottky rectifier designed for high-performance applications that require low voltage drop and minimal power loss. This state-of-the-art semiconductor device is part of ST's Schottky diode portfolio and is crafted to cater to the demanding needs of modern power supply designs.

Key Features

• High Junction Temperature Capability: The STPS10M60SF is capable of operating at a junction temperature of up to 175°C, making it suitable for high-temperature environments and ensuring reliability under thermal stress.
• Low Forward Voltage Drop: This rectifier offers a very low forward voltage drop (Vf) which enhances the efficiency of the system by reducing conduction losses, thus making it ideal for applications where power efficiency is critical.
• High Average Forward Current: With an average forward current (IF(AV)) of 10A, the STPS10M60SF can handle significant power levels, suitable for a wide range of applications.
• High Surge Current Capability: The device can withstand high surge currents, providing robust performance and protection against transient conditions.

Applications

The STPS10M60SF is versatile and can be used in various applications, including:

• Switch Mode Power Supplies (SMPS)
• High-frequency DC/DC converters
• Power factor correction circuits
• Freewheeling diodes in motor control circuits
• Automotive applications

Package and Environmental Compliance

The STPS10M60SF comes in a TO-220FP package, which is designed to optimize the thermal performance and power handling capabilities. The device is also compliant with RoHS and Halogen-free standards, ensuring environmental sustainability and suitability for use in green applications.

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The STPS10M60SF has undergone rigorous testing and quality control measures to ensure it meets the industry standards for reliability and performance. Customers can trust this power Schottky rectifier to deliver exceptional performance and durability in their electronic designs.
