The STM8L101F1U6ATR from STMicroelectronics is a cutting-edge, ultra-low-power 8-bit microcontroller that combines performance, robustness, and energy efficiency. Designed to operate within a voltage range of 1.65V to 3.6V, this microcontroller is ideal for battery-operated applications as well as for power-sensitive designs.

Key Features

• Core: STM8 core running at up to 16 MHz clock frequency.
• Memory: Comes with 8 Kbytes of Flash program memory with read-while-write support, 1 Kbyte of RAM, and 128 bytes of EEPROM.
• Data Integrity: True data EEPROM with guaranteed 100,000 write/erase cycles and 40-year data retention.
• Low Power Consumption: Five power-saving modes to ensure optimal energy efficiency: Halt, Active-halt, Wait, Low power run, and Low power wait.
• I/O Ports: Up to 28 I/O pins, each with interrupt capability, offering high sink/source current and programmable pull-up resistors.
• Advanced Peripherals: Includes an integrated 12-bit ADC, a 16-bit timer, an 8-bit timer with a prescaler, and an I2C, SPI, and UART interfaces for serial communication.
• Robust Design: Features an extended temperature range from -40°C to 85°C and incorporates an Internal, user-trimmable 16 MHz RC oscillator and an external clock source option.

Applications

The STM8L101F1U6ATR is versatile and can be used across various applications, making it a perfect choice for consumer electronics, industrial control systems, automotive modules, healthcare devices, and smart energy solutions. Its low power consumption and rich set of peripherals enable designers to create highly efficient and innovative products.

Package and Quality

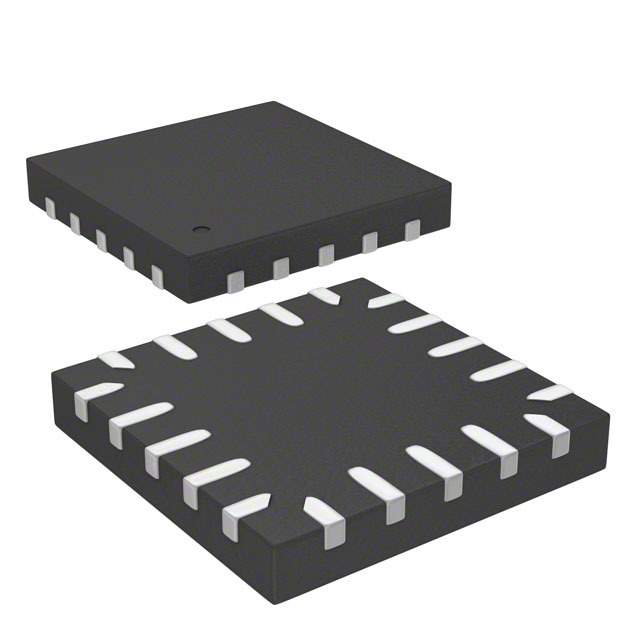

This microcontroller is delivered in a UFQFPN20 package, which is known for its small footprint and excellent thermal performance, making it suitable for space-constrained applications. Additionally, STMicroelectronics ensures high manufacturing standards, with the device being RoHS compliant and lead-free, reflecting a commitment to environmental sustainability.
