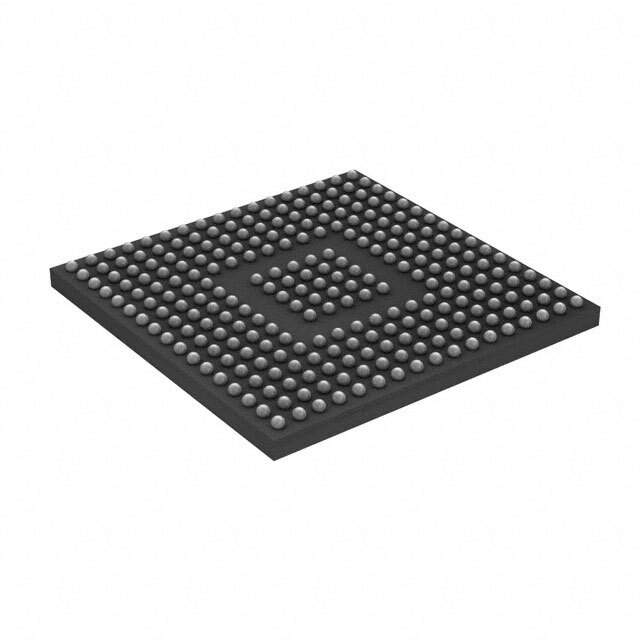

STM32H750XBH6 Microcontroller - STMicroelectronics

The STM32H750XBH6 is a high-performance microcontroller from STMicroelectronics, designed to cater to a wide range of applications that require high computational power, real-time performance, and rich advanced graphics. This microcontroller is part of the STM32H7 series, which is known for its state-of-the-art architecture, peripherals, and features that enable the design of sophisticated and efficient embedded systems.

At the heart of the STM32H750XBH6 is the advanced Arm® Cortex®-M7 core, which operates at speeds of up to 400 MHz. This core is equipped with a single-precision floating-point unit (FPU), delivering high computational performance and a significant boost in digital signal processing (DSP) capabilities. The core also features a L1-cache, which enhances execution speed and system efficiency.

This microcontroller comes with a generous 128 Kbytes of Flash memory and 1 Mbyte of RAM, providing ample space for complex applications and real-time data processing. The Flash memory features dual-bank support, which allows for safe and flexible firmware updates. The large RAM size is particularly beneficial for applications with extensive data buffering requirements or for those running sophisticated algorithms.

The STM32H750XBH6 is equipped with a rich set of peripherals and I/Os, enabling it to handle a variety of tasks and interface with external devices. Among these are multiple high-speed USB 2.0 interfaces, a TFT-LCD controller, and advanced timers. It also includes a range of connectivity options such as CAN, SDMMC, and Ethernet for networking applications.

With its integrated cryptographic acceleration, the STM32H750XBH6 ensures secure data communication, which is essential for modern embedded applications. The microcontroller also supports a wide range of external memory interfaces, including SDRAM, SRAM, NOR, and NAND memory, making it highly adaptable to different system configurations.

For developers, STMicroelectronics provides extensive support in the form of the STM32Cube ecosystem, which includes the HAL (Hardware Abstraction Layer) libraries, middleware components, and a comprehensive set of software tools. This ensures a smooth development process and quick time-to-market for products based on the STM32H750XBH6.

In summary, the STM32H750XBH6 is a versatile and powerful microcontroller that is ideal for applications that demand high-speed processing, advanced graphics, and robust security features. Its combination of performance, memory, and peripherals makes it a top choice for industrial, consumer, medical, and IoT devices.
