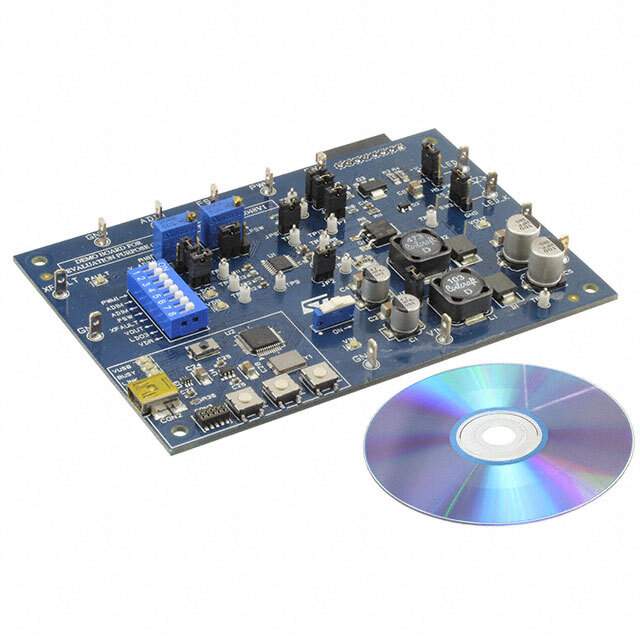

STEVAL-ILL048V1 LED Driver Evaluation Board from STMicroelectronics

The STEVAL-ILL048V1 is an advanced evaluation board designed by STMicroelectronics for driving LED arrays and lighting solutions. This product is specifically engineered to facilitate the testing and development of LED lighting applications, providing a versatile platform that supports a wide range of power and configuration settings.

At the heart of the STEVAL-ILL048V1 is the LED6001 chipset, a highly efficient monolithic step-down DC-DC converter with an integrated 2A, 40V power MOSFET. The LED6001 is optimized for driving LEDs with constant current for high brightness and uniform output, making it an ideal solution for both industrial and consumer lighting applications.

The evaluation board is designed to operate over a wide input voltage range, from 6.5V to 48V, accommodating various power supplies and allowing for flexibility in lighting design. It supports dimming control via PWM (Pulse Width Modulation) signal, which provides precise control over the brightness levels of the connected LEDs. This feature is critical for applications that require adjustable lighting conditions, such as mood lighting or backlighting in displays.

Built with protection features in mind, the STEVAL-ILL048V1 includes thermal shutdown, overcurrent, and overvoltage protection, ensuring safe operation and longevity of the LEDs and the driver itself. These safeguards contribute to the reliability and robustness of the final lighting solution.

The board comes with a user-friendly layout, clearly marked connections, and test points, which simplifies setup and measurements during evaluation. Engineers and designers can quickly prototype with the STEVAL-ILL048V1, enabling rapid development cycles and reducing time-to-market for new products.

Whether you're developing LED street lights, architectural lighting, or sophisticated backlight systems, the STEVAL-ILL048V1 evaluation board is a comprehensive tool that provides the functionality and adaptability needed to create efficient, high-performance LED lighting solutions.

For additional resources, including technical documentation, reference designs, and software tools, visit the STMicroelectronics website.
