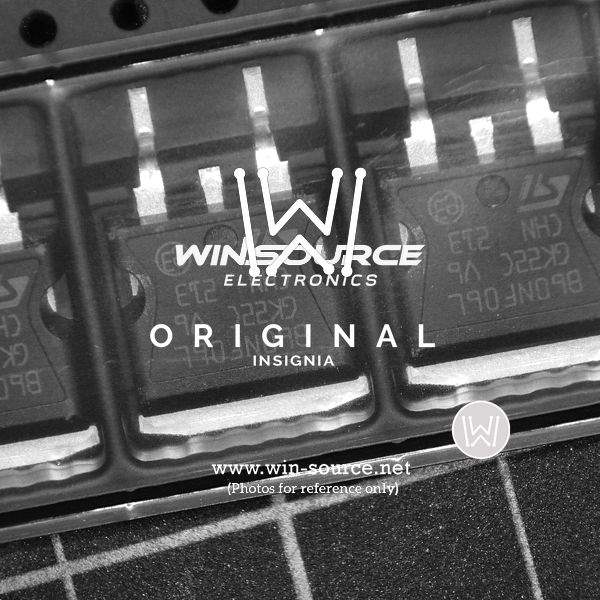

The STB60NF06LT4 is a high-performance N-Channel MOSFET produced by STMicroelectronics, a leader in semiconductor solutions. This power MOSFET is designed to handle high current and voltage with efficiency, making it an ideal choice for a wide range of applications including switch-mode power supplies, motor control circuits, and automotive applications.

Key Features

• Low threshold drive: The device can be driven at lower gate voltages, making it compatible with modern microcontrollers and reducing power dissipation.
• High current capability: With a continuous drain current of 60A, the STB60NF06LT4 is capable of handling high current loads, which is essential for heavy-duty operations.
• Low on-resistance: A low RDS(on) of just 0.0145Ω minimizes conduction losses and improves overall efficiency, which is crucial for power-sensitive applications.
• 100% avalanche tested: Guarantees the device's reliability and robustness by ensuring it can withstand high-energy pulses.
• Enhanced durability: The MOSFET is designed to endure harsh conditions, making it suitable for industrial and automotive environments.

Electrical Characteristics

• Voltage: The breakdown voltage is 60V, providing a good safety margin for most low to medium voltage applications.
• Speed: Fast switching characteristics due to its low gate charge and capacitance.

Applications

• Power supply units
• DC-DC converters
• Motor drivers
• Automotive applications
• Power management solutions

The STB60NF06LT4 N-Channel MOSFET is a testament to STMicroelectronics' commitment to providing advanced power management solutions. It offers a balance between performance and reliability, which is essential for designers looking to create efficient and durable electronic systems. With its robust package and industry-leading features, the STB60NF06LT4 stands out as a superior choice for a multitude of power applications.

Note: Always consult the manufacturer's datasheet and application notes for comprehensive design guidelines and safety information.
