The SPC56EL70L5DISP is a state-of-the-art microcontroller product from STMicroelectronics, a leader in the semiconductor industry. This product is part of the SPC56EL series, designed to meet the high-performance requirements of modern automotive applications. The SPC56EL70L5DISP is an ideal choice for advanced automotive control systems, including engine management, transmission control, and vehicle stability control applications.

Key Features

• Core: The SPC56EL70L5DISP is built around a powerful 32-bit Power Architecture e200z4d dual-core processor, which operates at speeds up to 180 MHz, providing excellent computational performance and real-time responsiveness.
• Memory: It comes equipped with a generous 2.5 MB of embedded flash memory, 192 KB of RAM, and 64 KB of data flash for robust data storage and efficient code execution.
• Connectivity: The device offers a wide range of communication interfaces including multiple CAN (Controller Area Network) interfaces, LIN (Local Interconnect Network) interfaces, and a FlexRay communication controller, facilitating versatile networking capabilities within the vehicle.
• Timers and ADCs: An array of timers, multiple 10-bit analog-to-digital converters (ADCs), and enhanced PWM units support complex timing and control tasks, essential for precise motor control and sensor interfacing.
• Security: Security features include a Memory Protection Unit (MPU), a Cryptographic Services Engine (CSE), and secure hardware extension (SHE) to ensure data integrity and protect against unauthorized access.
• Temperature Range: The microcontroller operates over a wide temperature range, making it suitable for harsh automotive environments.

Development Support

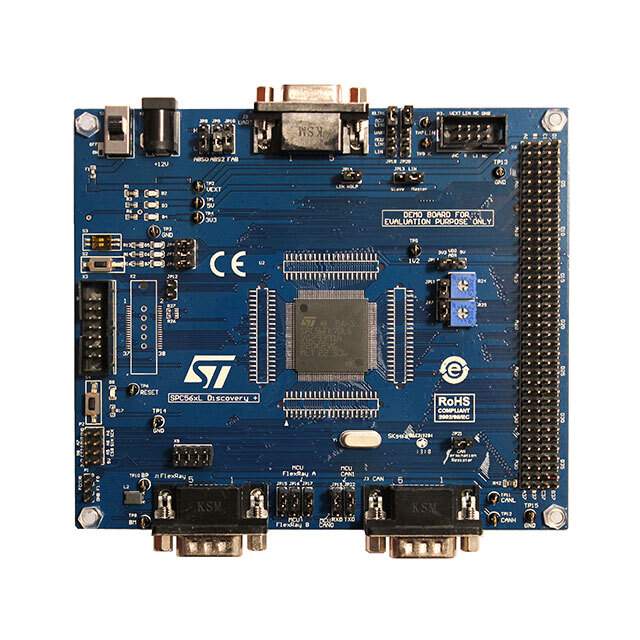

STMicroelectronics provides comprehensive development support for the SPC56EL70L5DISP with a complete suite of software tools, including compilers, debuggers, and development environments. Additionally, the product is supported by a range of development boards and evaluation kits which facilitate rapid prototyping and streamline the development process.

Applications

The robust feature set and high-performance capabilities of the SPC56EL70L5DISP make it an excellent choice for a variety of automotive applications, including but not limited to:

• Engine control units (ECU)
• Transmission control modules
• Brake control systems
• Electric power steering
• Advanced driver-assistance systems (ADAS)

With its combination of performance, connectivity, and security, the SPC56EL70L5DISP from STMicroelectronics is a versatile and reliable microcontroller solution for the automotive industry's demanding applications.
