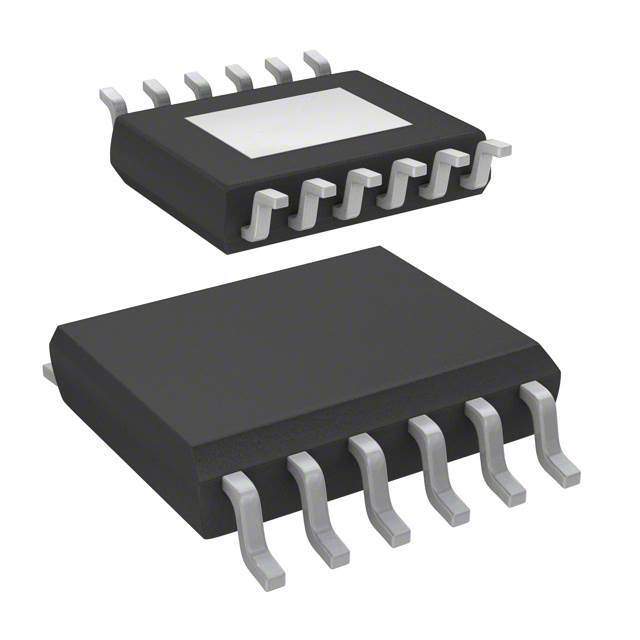

The IPS160H is a state-of-the-art Intelligent Power Switch (IPS) from STMicroelectronics, designed for driving resistive or inductive loads with one side connected to ground. This robust power switch incorporates advanced technologies to offer high efficiency and reliability for a wide range of applications.

Key Features

• High Operating Voltage: The IPS160H is capable of operating at high voltages, making it suitable for various industrial and automotive applications.
• Current Limiting: It features a precise current limiting function, which helps in protecting the device under load fault conditions.
• Thermal Shutdown: The built-in thermal shutdown with auto-restart ensures the device operates within safe temperature limits.
• Low Power Dissipation: With its low on-state resistance, the IPS160H ensures minimal power dissipation, enhancing the overall efficiency of the system.
• Diagnostic Feedback: The diagnostic feedback via a status pin allows for enhanced control and monitoring of the load status, making it easier to implement fault management protocols.

Applications

The versatility of the IPS160H makes it suitable for a wide array of applications, including but not limited to:

• Automotive systems such as lights, fans, and heaters
• Industrial control systems
• Smart home automation systems
• Programmable logic controllers (PLCs)

Advantages

Integrating the IPS160H into your design offers numerous advantages:

• Protection: The device provides robust protection features, ensuring longevity and stability of the end application.
• Integration: It reduces the need for additional components, simplifying the design and reducing the overall footprint.
• Performance: With high switching speeds and efficient operation, the IPS160H can improve the performance of the overall system.

With its combination of features, protections, and applications, the IPS160H from STMicroelectronics represents a smart choice for designers looking to enhance their power management solutions.
