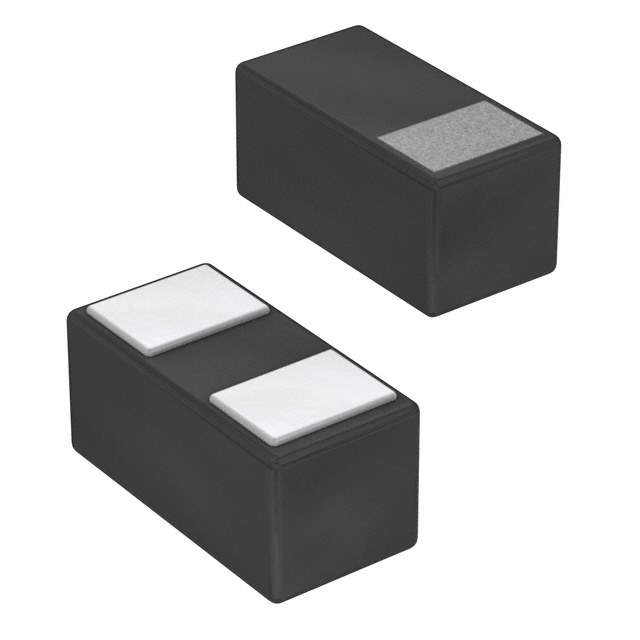

STMicroelectronics ESDA8P80-1U1M ESD Protection Device

The ESDA8P80-1U1M from STMicroelectronics is a state-of-the-art ESD protection device designed to safeguard sensitive electronics from electrostatic discharge (ESD) events. This robust component is part of ST's Transil™ series and is specifically engineered to provide a high level of protection for high-speed data lines and other vulnerable circuits.

Key Features

• Low Clamping Voltage: The ESDA8P80-1U1M offers an extremely low clamping voltage, ensuring that sensitive components are shielded from the potentially damaging effects of ESD strikes.
• High ESD Protection Level: With a high ESD protection level, this device can withstand ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard, making it ideal for protecting high-end and sensitive electronic equipment.
• Large Bandwidth: The device features a large bandwidth, making it suitable for protecting high-speed data lines without compromising signal integrity.
• Low Leakage Current: It has an ultra-low leakage current, ensuring minimal impact on the overall power consumption of the system it is protecting.
• Single-Line Protection: The ESDA8P80-1U1M is designed to protect one data line, offering a focused and efficient approach to ESD protection.
• SOT23-6L Package: The component is housed in a small SOT23-6L package, which is ideal for space-constrained applications.
• RoHS Compliant: This device is RoHS compliant, meeting the requirements for environmental sustainability and safety.

Applications

The ESDA8P80-1U1M is versatile and can be used in a wide range of applications, including:

• USB 2.0 and 3.0 interfaces
• HDMI, DisplayPort, and other high-speed data lines
• Smartphones, tablets, and other portable devices
• Set-top boxes, DVD players, and other consumer electronics
• Peripheral ports for computers and laptops

With its exceptional performance characteristics, the ESDA8P80-1U1M is an excellent choice for designers looking to enhance the ESD robustness of their systems without compromising on size or performance. STMicroelectronics' commitment to quality and reliability ensures that this ESD protection device will serve as a crucial component in safeguarding your electronic designs.
