STMicroelectronics EMIF08-1502M16 EMI Filter and Line Termination

The EMIF08-1502M16 is an integrated EMI filtering and line termination device produced by STMicroelectronics, designed to suppress electromagnetic interference (EMI) in electronic systems. This compact component is particularly suited for high-speed data lines, offering both EMI filter functionality and integrated line termination to maintain signal integrity.

Key Features

• Integrated Solution: The EMIF08-1502M16 combines EMI filtering with line termination, reducing the need for separate components and saving valuable PCB space.
• Multiple Lines Protection: With eight lines of EMI filtering, this device is capable of protecting multiple data lines simultaneously, making it an ideal choice for complex digital systems.
• Low Capacitance: Designed with a low capacitance per line, it ensures minimal signal distortion, which is crucial for maintaining the integrity of high-speed signals.
• High ESD Protection: The device offers robust electrostatic discharge (ESD) protection, safeguarding sensitive circuitry against static electricity and surges.
• Lead-Free Package: Housed in a lead-free package, the EMIF08-1502M16 aligns with modern environmental standards, minimizing the ecological impact.

Applications

The EMIF08-1502M16 is suitable for a wide range of applications, including:

• Mobile phones and communication devices
• Computers and laptops
• Digital cameras and video equipment
• Printers and other peripherals
• Consumer electronics

Technical Specifications

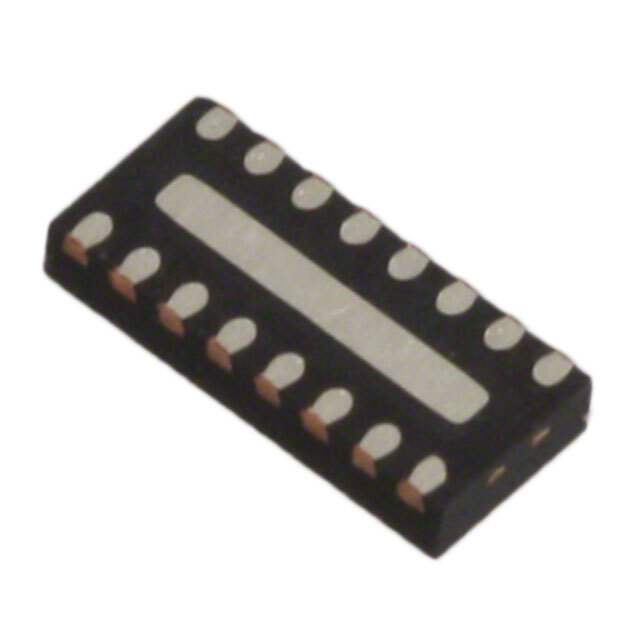

• Package: Micro QFN-16 (3x3 mm)
• Operating Temperature Range: -40°C to +85°C
• Cut-off Frequency: High cut-off frequency for minimal impact on high-speed signals
• Compliance: Complies with international standards, including IEC 61000-4-2 for ESD protection

The EMIF08-1502M16 from STMicroelectronics represents a sophisticated solution for designers looking to enhance the EMI performance of their products without compromising on space or signal quality. Its integration of multiple functions into a single package makes it a cost-effective and efficient choice for modern electronic designs.
