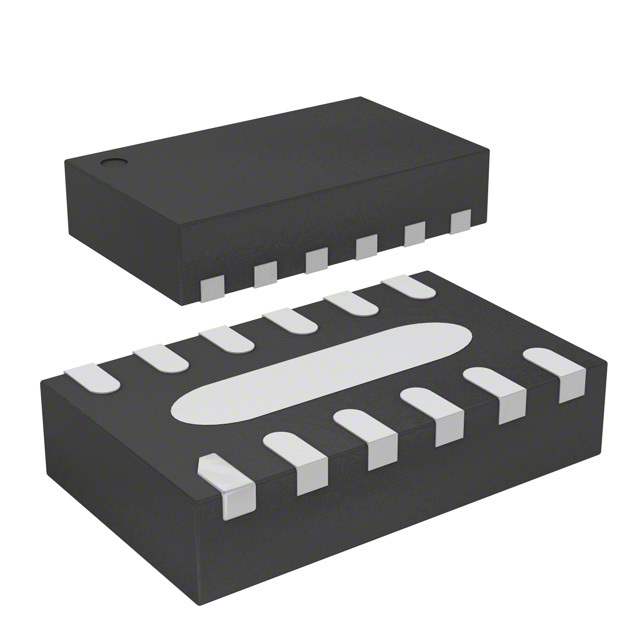

EMIF06-1502M12: A Versatile EMI Filtering Solution from STMicroelectronics

The EMIF06-1502M12 is a highly integrated device designed by STMicroelectronics to provide effective Electromagnetic Interference (EMI) filtering for electronic circuits. This compact component is particularly well-suited for applications requiring a high level of protection against EMI, ensuring the integrity and performance of the electronic system.

Key Features

• Integrated EMI Filtering: The EMIF06-1502M12 integrates six EMI filters into a single package, providing a convenient solution for designs with limited space.
• Low-pass Filter Design: Each filter is based on a low-pass filter design, which effectively attenuates unwanted high-frequency noise while allowing desired signals to pass through.
• High Cut-off Frequency: With a high cut-off frequency, this device is capable of filtering out noise while maintaining signal integrity for fast digital interfaces.
• Low Series Resistance: The low series resistance of the EMIF06-1502M12 minimizes signal attenuation, ensuring minimal impact on signal strength and quality.
• High ESD Protection: The device also provides a high level of Electrostatic Discharge (ESD) protection, safeguarding sensitive components from the potentially damaging effects of ESD events.

Applications

The EMIF06-1502M12 is an ideal choice for a wide range of applications where EMI can be a concern. It is commonly used in:

• Mobile phones and communication devices
• Computing and peripherals
• Consumer electronics
• Industrial controls
• Medical equipment

Compact and Efficient Design

STMicroelectronics has designed the EMIF06-1502M12 with a focus on space-saving and efficiency. The device's small footprint makes it an excellent choice for portable and compact electronic systems. Its efficient filtering capabilities ensure that it does not compromise the performance of the overall system while providing the necessary protection against EMI.

In summary, the EMIF06-1502M12 from STMicroelectronics is a robust, high-performance EMI filtering solution that combines multiple filtering functions into a single package. Its ability to protect against EMI and ESD makes it a valuable component in any sensitive electronic design.
