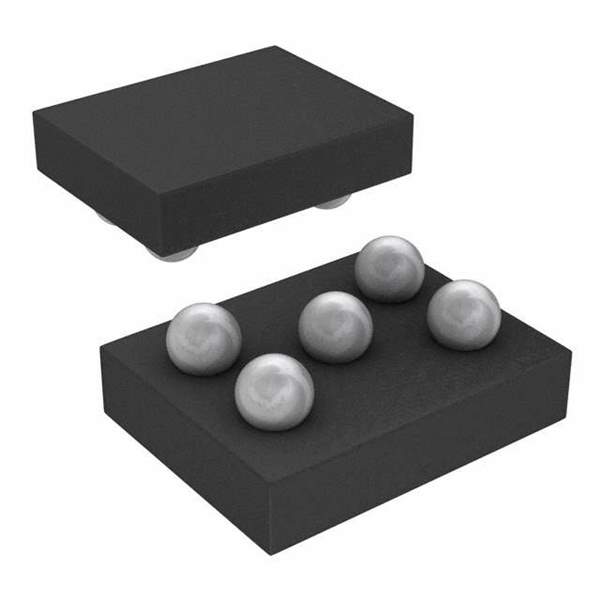

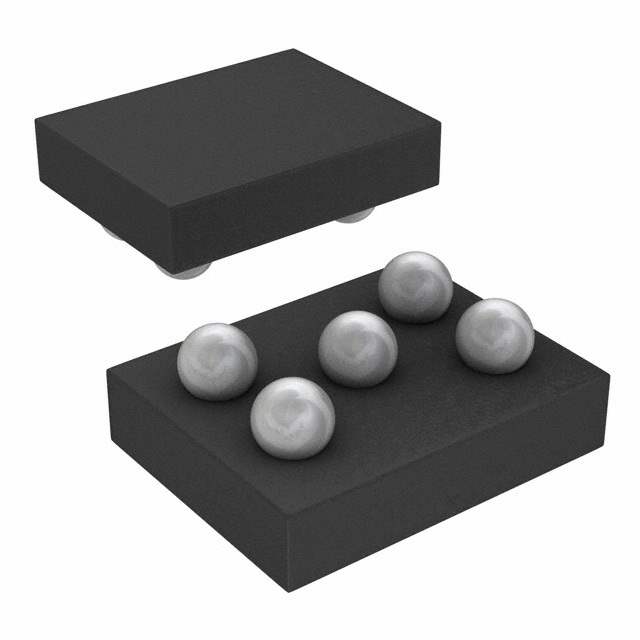

EMIF02-MIC03C2: Integrated EMI Filter and ESD Protection for Microphone Lines

The EMIF02-MIC03C2 is a highly integrated solution designed by STMicroelectronics to provide both Electromagnetic Interference (EMI) filtering and Electrostatic Discharge (ESD) protection, specifically tailored for microphone lines in a variety of electronic applications. This compact component is an essential addition for designers looking to enhance the audio performance and reliability of their systems while minimizing the impact on PCB space.

Key Features

• EMI Filtering: The EMIF02-MIC03C2 contains integrated pi-filters (π-filters) that offer excellent EMI suppression capabilities, ensuring that audio signals are free from external noise and interferences that can degrade sound quality.
• ESD Protection: It is designed to protect sensitive microphone circuits against ESD up to 15 kV, thus preventing damage to the electronic components and extending the lifespan of the end product.
• High Integration: By combining EMI filtering and ESD protection in a single package, it reduces the number of components required on the PCB, which simplifies design and saves valuable board space.
• Low Insertion Loss: The device is engineered to have a low insertion loss, which is critical for maintaining the integrity of audio signals passing through the filter.
• Small Footprint: The EMIF02-MIC03C2 comes in a small flip-chip package that is not only space-saving but also offers excellent electrical and thermal performance.

Applications

The EMIF02-MIC03C2 is ideal for a wide range of applications where audio performance is critical. It is particularly suited for:

• Smartphones and tablets
• Bluetooth headsets
• Audio recording devices
• Portable media players
• Notebook and desktop computers

Conclusion

With its advanced EMI filtering and robust ESD protection, the EMIF02-MIC03C2 from STMicroelectronics is a versatile component that meets the demands of modern electronic devices. Its compact design and high-performance characteristics make it an excellent choice for engineers looking to improve audio quality and ensure product durability in their designs.
