Introducing the E-TDA7560 Integrated Circuit by STMicroelectronics

The E-TDA7560 is a cutting-edge audio power amplifier from STMicroelectronics, a leader in semiconductor solutions. This high-performance integrated circuit is designed for car radio applications, providing a remarkable audio experience for users on the go. Its versatility and efficiency make it an ideal choice for modern automotive entertainment systems.

Key Features

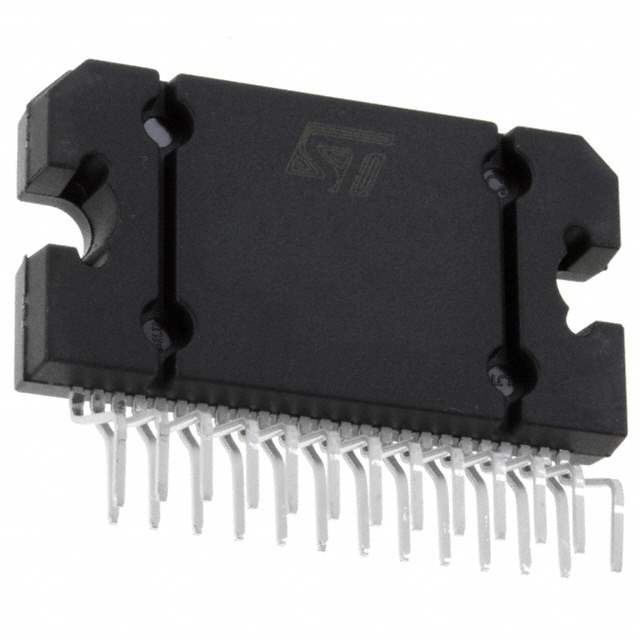

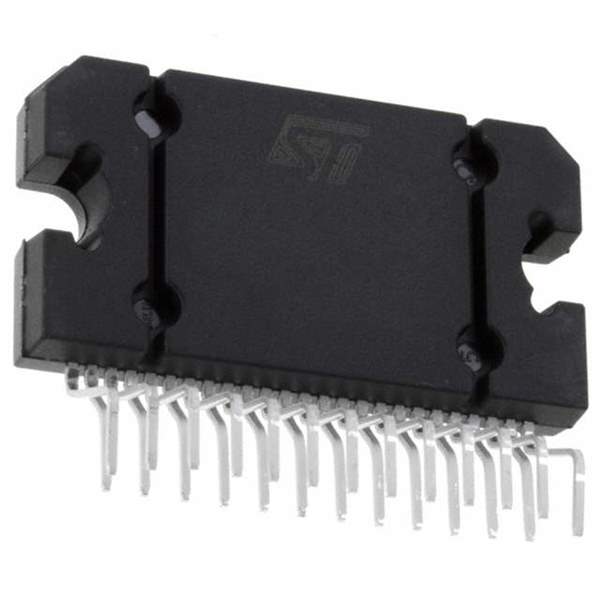

• Flexiwatt25 package: The E-TDA7560 comes in a robust Flexiwatt25 package, ensuring a compact footprint while offering excellent power dissipation and thermal performance.
• High output power: Capable of delivering up to 4 x 50W of continuous output power, this amplifier can drive a wide range of speakers with clarity and power, ensuring a rich and immersive audio experience.
• Multiwatt15H(V) vertical: The inclusion of the Multiwatt15H(V) vertical package option provides additional flexibility for space-constrained applications, without compromising on power or sound quality.

Advanced Technologies

The E-TDA7560 incorporates several advanced technologies that enhance its performance:

• AB class operation: The amplifier operates in AB class, striking a balance between sound quality and efficiency, making it suitable for a variety of audio applications.
• High efficiency: Thanks to its high efficiency, the E-TDA7560 ensures reduced power consumption and minimizes heat generation, extending the longevity of the device and the overall system.
• Low distortion: The device is engineered to provide low THD (Total Harmonic Distortion), ensuring that the audio output is clear and precise, with minimal unwanted noise.

Protection Features

Safety and reliability are paramount in automotive applications. The E-TDA7560 includes several protection features to safeguard the IC and the audio system:

• Short-circuit protection: Prevents damage to the amplifier and speakers in the event of a short circuit.
• Thermal overload protection: Protects the IC from overheating, ensuring consistent performance and longevity.
• Load dump voltage surge protection: Shields the IC against voltage spikes that can occur in automotive power systems.

The E-TDA7560 by STMicroelectronics is an exceptional choice for automotive manufacturers and audio system designers looking for a reliable, high-quality audio amplifier that can deliver superior sound performance in a compact and efficient package.
