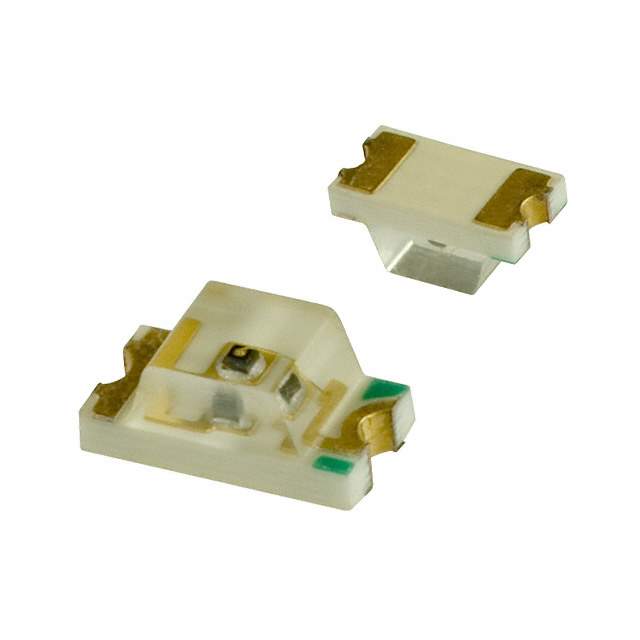

PY1101W-TR Real Image
Same model may have multiple batches, images only for reference.

PY1101W-TR

Part No PY1101W-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 1206 SMD
Datasheet
PY1101W-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Packaging Reel - TR
Status Obsolete(EOL)
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 8mcd
Lens Style/Size Square with Flat Top, 1.50mm
Forward Voltage 2.1V
Current - Test 20mA
Viewing Angle 148°, 145°
Mounting SMD (SMT)
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Case / Package 3216 Type
Height (Max) 1.90mm
Win Source Part Number 108783-PY1101W-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PY1101W-TR CAD Model

Description

The PY1101W-TR is an obsolete (EOL) optoelectronic component manufactured by Stanley Electric Co. This component is designed to provide high performance and reliability. The PY1101W-TR has a compact design and is easy to install. It has a green color and a square shape with a flat top. The optoelectronic component has a viewing angle of 148° and 145°. The PY1101W-TR has a low power consumption and is ideal for use in portable devices. It has a long lifespan and is resistant to temperature fluctuations, making it suitable for use in a variety of environments.
