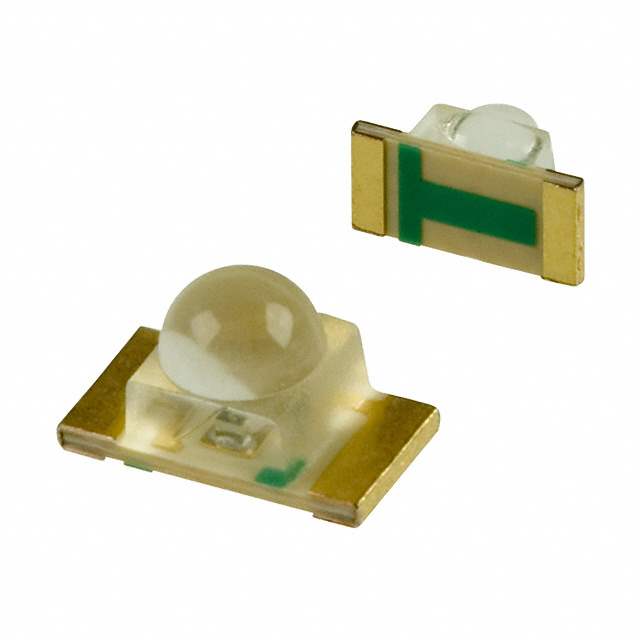

Same model may have multiple batches, images only for reference.

HBR1105W-TR

Name: HBR1105W-TR
Brand: Stanley Electric Co
SKU: 141371
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HBR1105W-TR
Manufacturer	Stanley Electric Co
Catalog	LED Indication - Discrete
Description	LED RED CLEAR 1206 SMD
Datasheet	HBR1105W-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Optoelectronics
Manufacturer	Stanley Electric Co
Packaging	Reel - TR
Status	Active
Color	Red
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	50mcd
Lens Style/Size	Round with Domed Top, 1.60mm
Forward Voltage	1.7V
Current - Test	20mA
Viewing Angle	50°
Mounting	SMD (SMT)
Wavelength - Dominant	647nm
Wavelength - Peak	660nm
Case / Package	3216 Type
Height (Max)	2.05mm
Win Source Part Number	001463-HBR1105W-TR
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian HBR1105W-TR CAD Model

Alternative Products

Description

The Stanley Electric Co 001463-HBR1105W-TR is a high-quality LED that is designed to offer superior performance when used in various electronic devices. This LED has a forward voltage of 1.7V and a viewing angle of 50°. It is mounted using SMD (SMT) technology and has a millicandela rating of 50mcd. The LED has a lens style/size of round with domed top, 1.60mm and a height of 2.05mm. It has a wavelength-dominant of 647nm and a wavelength-peak of 660nm. The LED is packaged in a reel - TR format and is part of the Optoelectronics category.
