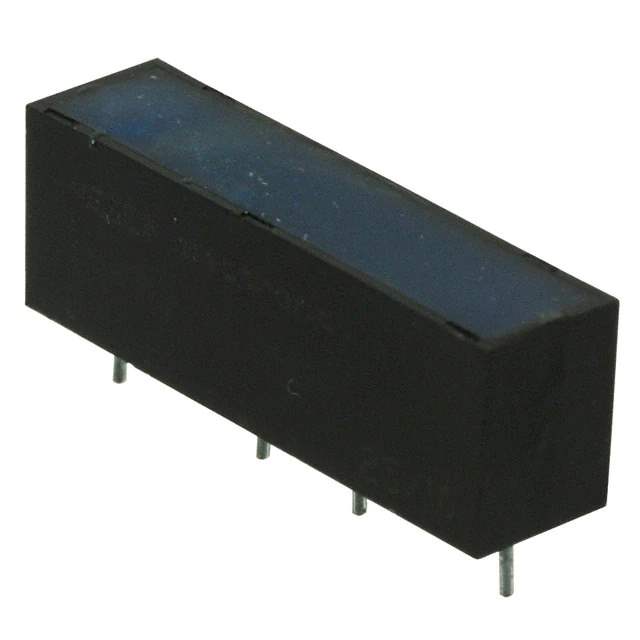

SIL05-1A72-71D Real Image
Same model may have multiple batches, images only for reference.

SIL05-1A72-71D

Part No SIL05-1A72-71D
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 0.5A 5V
Datasheet
SIL05-1A72-71D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Standex-Meder Electronics
Series SIL
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.75 VDC
Operate Time 0.7 ms
Release Time 0.1 ms
Temperature Range - Operating -20°C ~ 70°C
Coil Resistance 500 Ohms
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 933796-SIL05-1A72-71D
Ultra Librarian 3D Model Ultra Librarian SIL05-1A72-71D CAD Model

Description

The SIL05-1A72-71D is a single-pole, single-throw normally open reed relay from the SIL series.

  • Series: SIL
  • Contact Form: Single-Pole, Single-Throw Normally Open (SPST-NO)
  • Coil Voltage: 5VDC
  • Coil Resistance: 500 Ohms
  • Contact Rating: 500mA
  • Switching Voltage: Up to 200VAC or 200VDC
  • Operate Time: 0.7 ms
  • Release Time: 0.1 ms
  • Mounting Type: Through-Hole
  • Packaging: Tube
  • Temperature Range: -20°C to 70°C
  • Production Status: Active
  • Manufacturer: Standex-Meder Electronics
