Same model may have multiple batches, images only for reference.

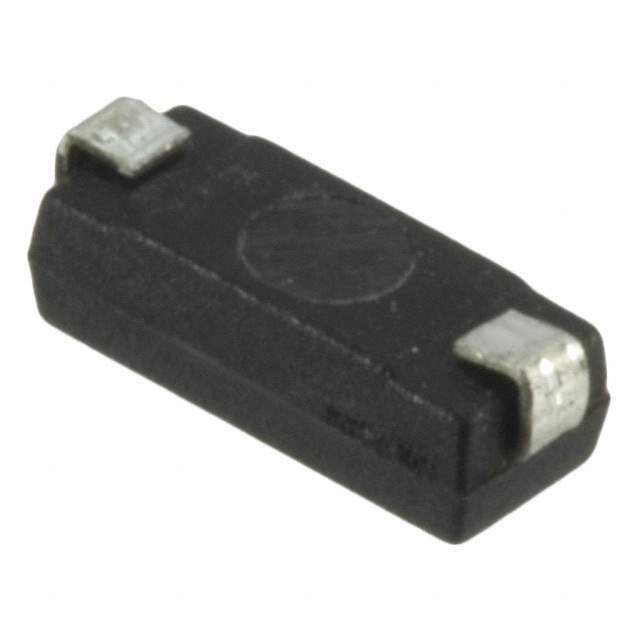

MK24-A-3 Real Image
Same model may have multiple batches, images only for reference.

MK24-A-3

Part No MK24-A-3
Manufacturer Standex-Meder Electronics
Catalog Magnetic, Reed Switches
Description SWITCH REED SPST-NO 100MA 30V
Datasheet
MK24-A-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000756-MK24-A-3
Manufacturer Standex-Meder Electronics
Category Switches Magnetic, Reed Switches
Series MK24
Type Molded Body Reed
Circuit SPST-NO
Operate Range 23 ~ 50AT
Current - Switching 100mA (AC/DC)
Voltage - Switching AC 30 V
Voltage - Switching DC 30 V
Size - Body 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm)
Ultra Librarian 3D Model Ultra Librarian MK24-A-3 CAD Model

Description

The Standex-Meder Electronics MK24 is a molded body reed switch that operates in a single-pole, single-throw normally open circuit configuration.

  • Operate Range: 23 to 50AT
  • Maximum Switching Current: 100mA (AC/DC)
  • Maximum Switching Voltage: 30V (AC/DC)
  • Body Size: 0.197 inches in length, 0.087 inches in width, and 0.067 inches in height, or 5.00mm x 2.20mm x 1.70mm
  • Ideal for: use in magnetic switches, reed relays, and proximity sensors
