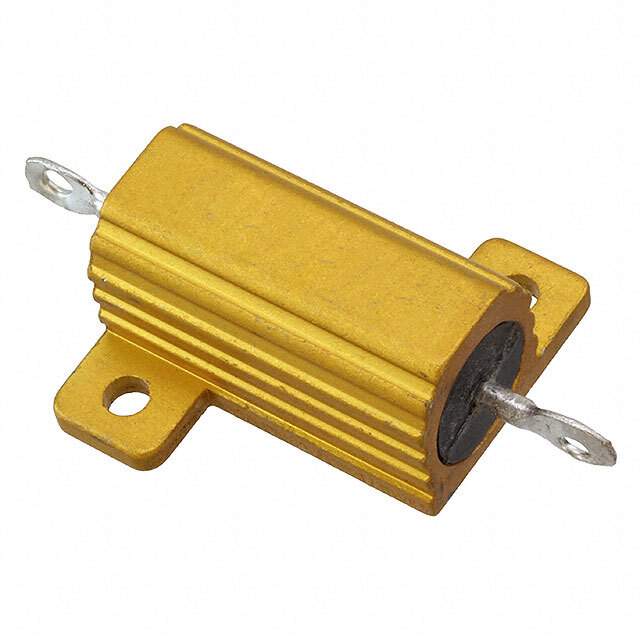

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Stackpole Electronics Inc
Series KAL
Package Bulk
Resistance 50 Ohms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 275°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.062" L x 1.080" W (26.97mm x 27.43mm)
Height - Seated (Max) 0.577" (14.66mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1337983-KAL25FB50R0
Ultra Librarian 3D Model Ultra Librarian KAL25FB50R0 CAD Model

Description

The KAL25FB50R0 resistor is a moisture-resistant wirewound resistor from Stackpole Electronics Inc.

  • Resistance: 50 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Power Rating: 25W
  • Composition: Aluminum
  • Mounting Type: Axial/Box
  • Mounting Feature: Flanges
  • Lead Style: Solder Lugs
  • Package/Case: Axial
  • Temperature Range: -55°C to 275°C
  • Size/Dimension: 1.062" L x 1.080" W (26.97mm x 27.43mm)
  • Series: KAL
  • Standard Package: 250
