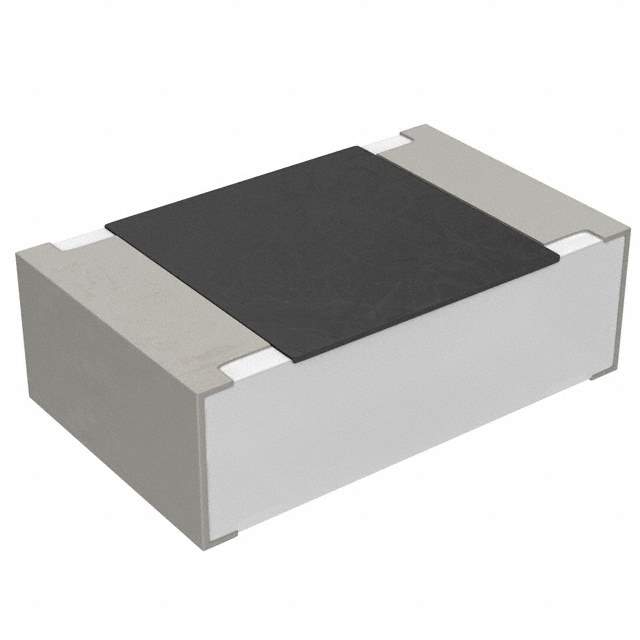

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Stackpole Electronics Inc
Packaging Reel - TR
Resistance 20 mOhms
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CSR1/40.02FITR-ND,CSR 1/4 0.02 1% I,CSR1/40.02FITR,CSR0805FK20L0CT,CSR1/40.02FICT-ND,CSR0805FK20L0TR,CSR0805FK20L0DKR,CSR1/40.02FIDKR-ND,CSR1/40.02FIDKR,CSR1/40.02FICT
Standard Package 1,000
Win Source Part Number 1331583-CSR0805FK20L0
Ultra Librarian 3D Model Ultra Librarian CSR0805FK20L0 CAD Model

Description

The Stackpole Electronics Inc 1331583-CSR0805FK20L0 is a chip resistor with a resistance of 20mOhms.

  • Manufacturer: Stackpole Electronics Inc
  • Product Name: 1331583-CSR0805FK20L0
  • Resistance: 20mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Power: 0.25W
  • Composition: Thick Film
  • Package: 0805 (2012 Metric)
  • Mounting: Surface
  • Standard Package: 1,000 pieces
  • Application: Current Sense
